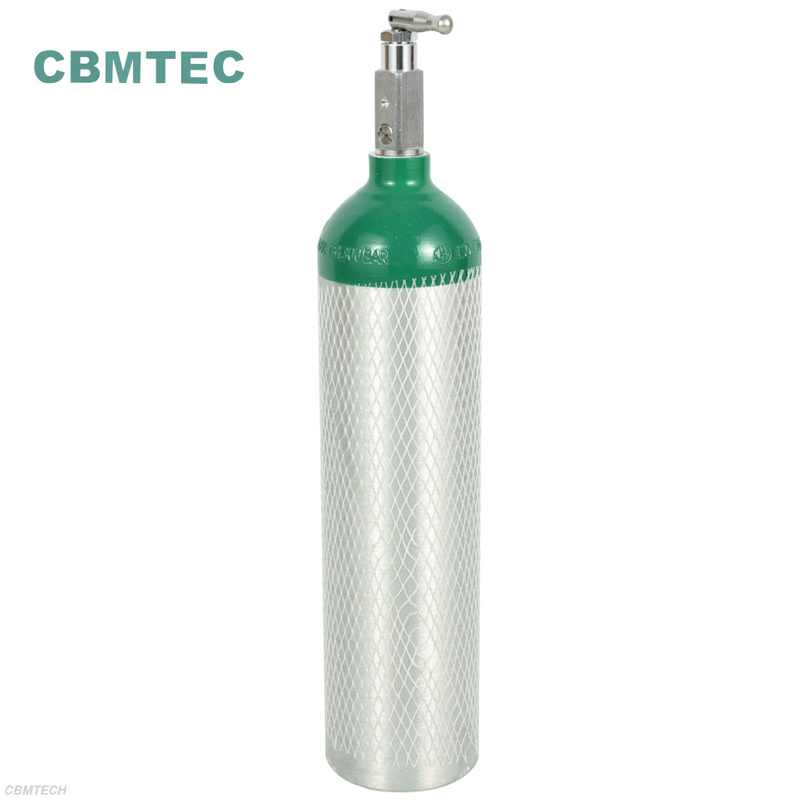

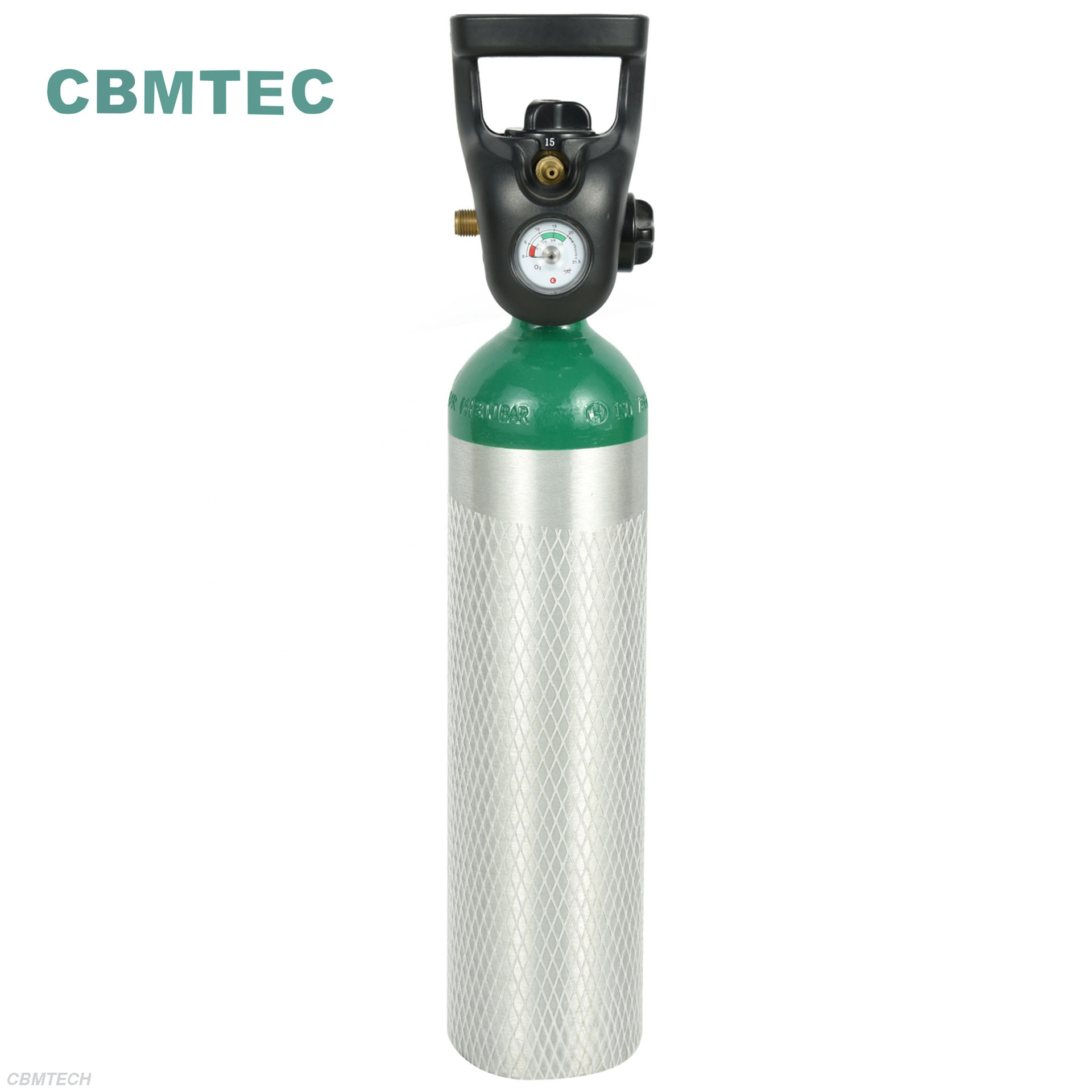

2.5L Aluminum Oxygen Unit

High Pressure Aluminum Oxygen Cylinders 2.8L
Quantity:
  • A2.5
  • CBMTECH
  • General

2.5L OxygenAluminum Cylinders:

Hospital Medical Aluminum Cylinders,Medical Aluminum Cylinders, Lightweight Ambulance Breathing Oxygen Cylinders Made from Aluminum Alloy Al6061 for home oxygen therapy, emergency medical services(ems), pre-hospital care and hospitals, nursing homes, clinic supply and medical institutions.

Spec. of 2.5L Oxygen Aluminum Cylinders:

-Cylinder OD:111mm;

-W.P./T.P.:15/25Mpa;

-(Normal)Wall Thickness:5.6mm;

-(Normal)Height: -433mm;

-N.W.:2.6kg;

-Green silvery;

Connecting Thread:PZ27.8;

-Manufacturing Standard: ISO7866

-Whole set including:

*1)2.5L  oxygen cylinder(LWH2.5-111-15);

*2)Click style oxygen regulator JH-870S;

*3)Oxygen Valve CGA870;

*4).Good-quality Messenger Bag;

*5)The accessary of  Nasal Cannula with O2 mask.

NoSpecificationOuter DiameterWater VolumeLengthWeight Working pressure
1LW-60-0.5-20-H60mm0.5L285mm0.59kg200bar
2LW-75-0.7-15-H75mm0.7L295mm0.85kg150bar
3LW-82-0.7-15-H82mm0.7L235mm0.9kg150bar
4LW-89-1.0-15-H89mm1.0L269mm1.2kg150bar
5LW-89-1.4-15-H89mm1.4L345mm1.4kg150bar
6LW-108-1.0-15-H108mm1.0L210mm1.3kg150bar
7LW-108-1.4-15-H108mm1.4L264mm1.6kg150bar
8LW-108-2.0-15-H108mm2.0L346mm2.1kg150bar
9LW-108-2.5-15-H108mm2.5L413mm2.5kg150bar
10LW-120-2.0-15-H120mm2.0L320mm2.7kg150bar
11LW-120-2.5-15-H120mm2.5L369mm3.0kg150bar
12LW-120-2.8-15-H120mm2.8L398mm3.2kg150bar
13LW-120-3.2-15-H120mm3.2L437mm3.5kg150bar
14LW-140-4.0-15-H140mm4.0L420mm4.2kg150bar
15LW-140-5.0-15-H140mm5.0L500mm4.9kg150bar
16LW140-6.0-15-H140mm6.0L580mm5.6kg150bar
17LW140-8.0-15-H140mm8.0L741mm7.2kg150bar
18LW140-5.0-20-H140mm5.0L525mm6.3kg200bar
19LW140-6.0-20-H140mm6.0L652mm7.98kg200bar
20LW-159-10.0-15-H159mm10.0L730mm8.8kg150bar
21LW-184-9.0-20-H184mm9.0L575mm12.0kg200bar
22LW-184-10-20-H184mm10.0L620mm12.9kg200bar
23LW-184-11-20-H184mm11.0L665mm14.2kg200bar
24LW-184-12-20-H184mm12.0L710mm15.4kg200bar
25LW-203-12-15-H203mm12.0L567mm11.8kg150bar
26LW-203-20-15-H203mm20.0L873mm17kg150bar
27LW-203-21.3-15-H203mm21.3L962mm19.9kg150bar
28LW-204-12-20-H204mm12.0L610mm16.5kg200bar
29LW-204-15-20-H204mm15.0L735mm18.7kg200bar
30LW-204-20-20-H204mm20.0L940mm23.4kg200bar
31LW-232-29.5-15-H232mm29.5L994mm30.2kg150bar
32LW-232-30.0-15-H232mm30.0L1010mm30.5kg150bar
33LW-232-33.4-15-H232mm33.4L1126mm31.3kg150bar
34LW-232-40.0-15-H232mm40.0L1340mm36.5kg150bar
35LW-232-20.0-20-H232mm20.0L750mm26.9kg200bar
36LW-232-26.0-20-H232mm26.0L921mm30.7kg200bar
37LW-232-30.0-20-H232mm30.0L1076mm36.4kg200bar
38LW-232-31.5-20-H232mm31.5L1096mm38kg200bar
39LW-232-40.0-20-H232mm40.0L1365mm44.1kg200bar
40LW-250-40.0-15-H250mm40.0L1150mm36.7kg150bar
41LW-250-46.4-15-H250mm46.4L1305mm38.7kg150bar
42LW-250-47.5-15-H250mm47.5L1340mm42.0kg150bar
43LW-250-50.0-15-H250mm50.0L1590mm39kg200bar
44LW-250-40.0-20-H250mm40.0L1227mm46.3kg200bar
45LW-250-50.0-20-H250mm50.0L1500mm56kg200bar

*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.

*Advantages We Have:
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.

*NOTES:
-a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional;

-b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved  Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.



Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
