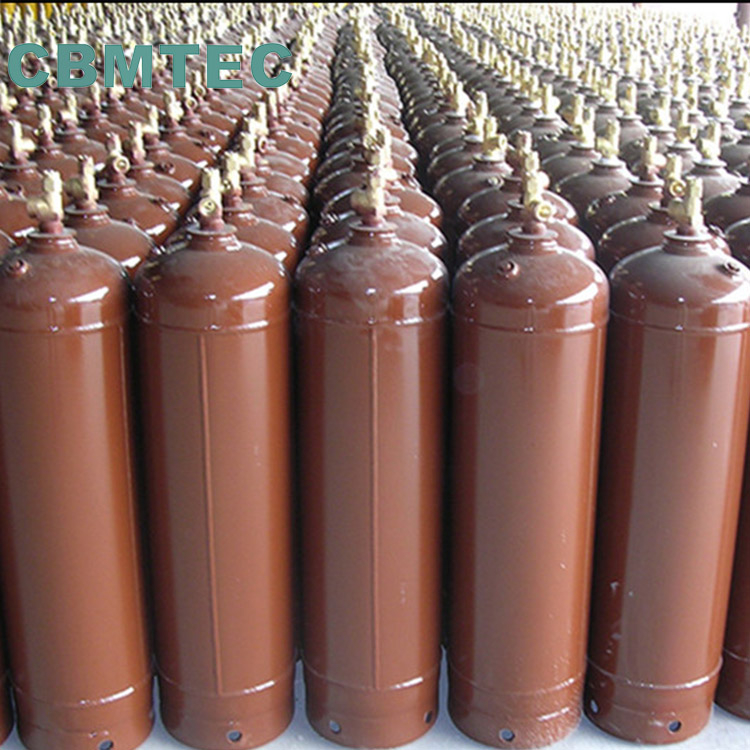

40L Dissolved Acetylene Cylinders

40L Dissolved C2H2 Cylinders
Availability:
Quantity:
  • RYL250-40(Brown)
  • CBMTECH
  • 73110090
  •

40L Dissolved Acetylene Cylinders,brown color,equipped with C2H2 valves CGA300 & round caps,perfect for welding uses.

Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of cutting,welding,illumination,chemical analysis,military projects and so on.There are  too many advantages of safety, energy conservation,convenience, little pollution so and ao fourth.

Our products are welded by high grade and low alloy steel plate ,all C2H2 cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.The products have the advantages of high porosity,much filling gas and so on.Our manufactured acetylene cylinders have the stable quality,safe economy.

Should you any interests or some more info needed on our Acetylene Gas Cylinders & accessaries, just pls feel free to contact us!

Nominal Capacity
40L
Nominal Diameter
250mm
Limited Filling Pressure(15c)
1.52Mpa
Hydrostatic Test Pressure
5.2Mpa
Air Test Pressure
3 Mpa


Material properties
Compressive Strength
≥1.8N/mm2
Porosity
90~92%
Volume Density
≤270g/L
Shoulder Axia Gap
≤2.5mm
Solvent
acetone
Filling Gas Quantity
About7.2kg approx7.2kg
Environmental Temperature
under
