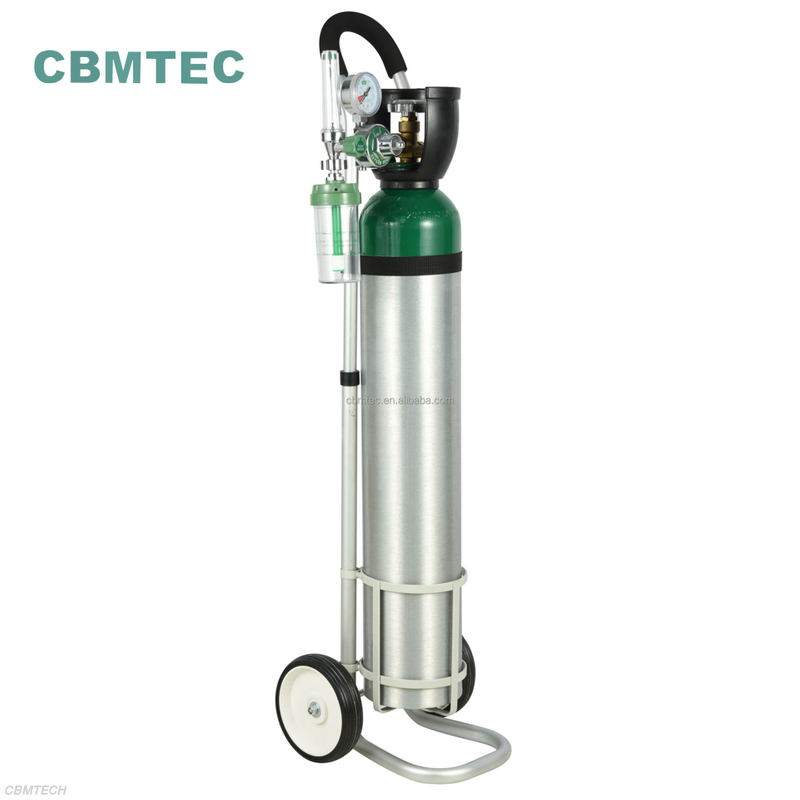

5L Aluminum Oxygen Cylinder

High Pressure Aluminum Oxygen Cylinders 5L
Quantity:
  • LWH140-5.0-X
  • CBMTECH
  • General

Spec. of 5L Oxygen Aluminum Cylinders:

-Cylinder OD:140mm;

 -W.P./T.P.:15/22.5Mpa  or 16.67/25Mpa;

-(Normal)Wall Thickness:7.1mm;

-(Normal)Height: ~507mm;

-(Normal)N.W.:~5.1kg(w/o valve & handle);

-Green silvery; -Connecting Thread: PZ27.8 or 3/4-16UNF.;

-W/ normal oxygen valve CGA540 & plastic handle.

*Main Features:
-High interior cleanliness and odourlessness after passivation treatment;
-Aluminum gas cylinders can be filled with air & other mixture gases for breathing and are suitable for diving activity with different level;
-Lightweight Aluminum gas cylinders are made from the superior aluminum alloy 6061 so that they can provide a strong corrosion-resistant interior and exterior- Unlike corrosion-prone steel tanks and are suitable for sea water and other corrosive environments.

No.SpecificationOuter DiameterWater VolumeLengthWeightWorking pressure
mminlitrecu inmminkglbbar
1LW-60-0.5-20-H602.40.530.528511.20.591.3200
2LW-75-0.7-15-H7530.742.729511.60.851.9150
3LW-82-0.7-15-H823.20.742.72359.20.92150
4LW-89-1.0-15-H893.51.061.026910.591.22.6150
5LW-89-1.4-15-H893.51.485.434513.61.43.1150
6LW-108-1.0-15-H1084.31.061.02108.31.32.9150
7LW-108-1.4-15-H1084.31.485.426410.41.63.5150
8LW-108-2.0-15-H1084.32.0122.034613.62.14.6150
9LW-108-2.5-15-H1084.32.5152.541316.32.55.5150
10LW-120-2.0-15-H1204.72.0122.032012.62.75.9150
11LW-120-2.5-15-H1204.72.5152.536914.536.6150
12LW-120-2.8-15-H1204.72.8170.839815.73.27150
13LW-120-3.2-15-H1204.73.2195.243717.23.57.7150
14LW-140-4.0-15-H1405.54.0244.042016.54.29.3150
15LW-140-5.0-15-H1405.55.0305.0500124.910.8150
16LW140-6.0-15-H1405.56.0366.058022.85.612.3150
17LW140-8.0-15-H1405.58.0488.074139.27.215.9150
18LW140-5.0-20-H1405.55.0305.052520.76.313.9200
19LW140-6.0-20-H1405.56.0366.065225.77.9817.6200
20LW-159-10.0-15-H1596.310.0610.073028.78.819.4150
21LW-184-9.0-20-H1847.29.0549.157522.61226.4200
22LW-184-10-20-H1847.210.0610.062024.412.928.4200
23LW-184-11-20-H1847.211.0671.166526.214.231.3200
24LW-184-12-20-H1847.212.0732.27102815.433.9200
25LW-203-12-15-H203812.0732.256722.311.826150
26LW-203-20-15-H203820.01220.387334.41737.4150
27LW-203-21.3-15-H203821.31299.696237.919.943.8150
28LW-204-12-20-H204812.0732.26102416.536.3200
29LW-204-15-20-H204815.0915.273528.918.741.2200
30LW-204-20-20-H204820.01220.39403723.451.5200
31LW-232-29.5-15-H2329.129.51799.999439.130.266.5150
32LW-232-30.0-15-H2329.130.01830.4101039.830.567.2150
33LW-232-33.4-15-H2329.133.42037.8112644.331.368.9150
34LW-232-40.0-15-H2329.140.02440.5134052.836.580.4150
35LW-232-20.0-20-H2329.120.01220.375029.526.959.3200
36LW-232-26.0-20-H2329.126.01586.392136.330.767.6200
37LW-232-30.0-20-H2329.130.01830.4107643.936.480.2200
38LW-232-31.5-20-H2329.131.51921.9109643.13883.7200
39LW-232-40.0-20-H2329.140.02440.5136553.744.197.1200
40LW-250-40.0-15-H2509.840.02440.5115045.336.780.8150
41LW-250-46.4-15-H2509.846.42831.0130551.438.785.2150
42LW-250-47.5-15-H2509.847.52898.1134052.84292.5150
43LW-250-50.0-15-H2509.850.03050.6159062.63985.9200
44LW-250-40.0-20-H2509.840.02440.5122748.346.3101.9200
45LW-250-50.0-20-H2509.850.03050.6150059.156123.3200

*About Us:

We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.

*Advantages We Have:
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.

*NOTES:
-a). Various types of steel/aluminum oxygen gas cylinders,cylinder caps/steel valve guards,gas cylinder valves,gas flowmeter regulators can be optional;

-b). We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved  Acetylene Cylinders(2L~60L).

Anyway,should you have any intersts or some more info needed on our acetylene gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
