WMA140-5-150
CBMTECH
73110090
General

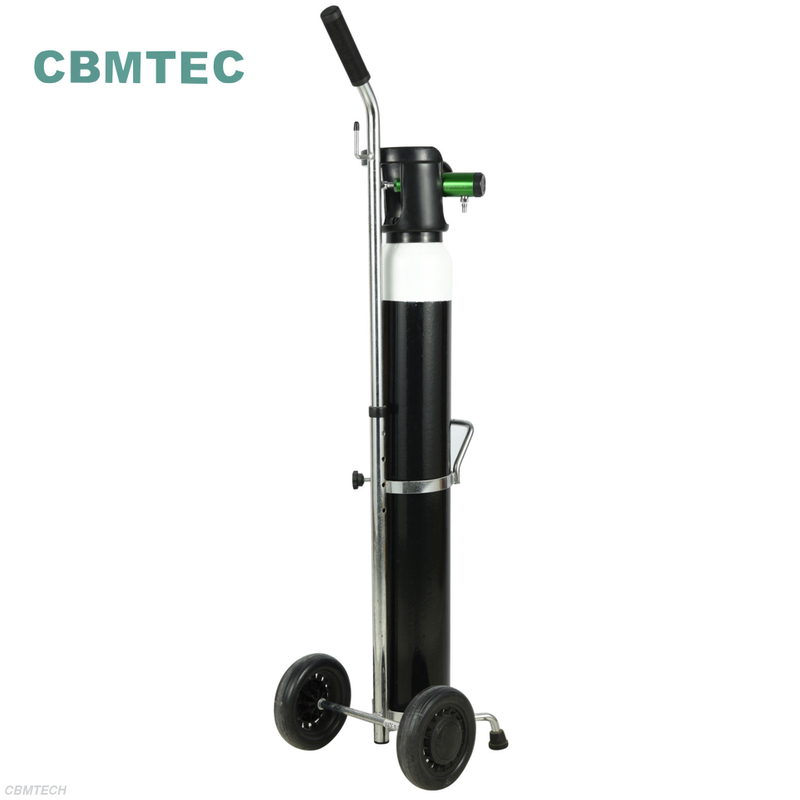

Spec. of 5L Oxygen Cylinders:
-OD=140mm;
-W. P. /T. P.: 15/25Mpa;
-(Normal)Wall Thickness: 4.5 mm;
-(Normal)Height: 830mm;
-(Normal)N. W.: 13.6kg;
-White as your preferred;
-W/ O2 valves CGA540, QF-2, & Handles(to-be-confirmed);
-Connecting Thread: PZ 27.8.
-Manufacturing Standard: ISO-9809-3.
| Type | Volume(L) | Working /TestPressure(Mpa) | Outer Dia (mm) | Wall Thickness(mm) | Length (mm) | Weight (kg) | Material | Standard |
| WMA219-20-15 | 20 | 15/25 | 219 | 5.7 | 715 | 28 | 37Mn | ISO9809 |
| WMA219-32-15 | 32 | 1075 | 39 | |||||
| WMA219-36-15 | 36 | 1195 | 42.5 | |||||
| WMA219-38-15 | 38 | 1245 | 45 | |||||
| WMA219-40-15 | 40 | 1305 | 46.5 | |||||
| WMA219-45-15 | 45 | 1455 | 52.5 | |||||
| WZA267-68-15 | 68 | 267 | 6.1 | 1500 | 74 | |||
| WZA267-70-15 | 70 | 1540 | 76 | |||||
| WGA232-40-20 | 40 | 20/30 | 232 | 5.5 | 1200 | 48.5 | 34CrMo4 | |
| WGA232-47-20 | 47 | 1385 | 55 | |||||
| WGA232-50-20 | 50 | 1460 | 58 |
5L (Outside Diameter 140mm)OEM Oxygen Cylinders for medical oxygen therapy system:

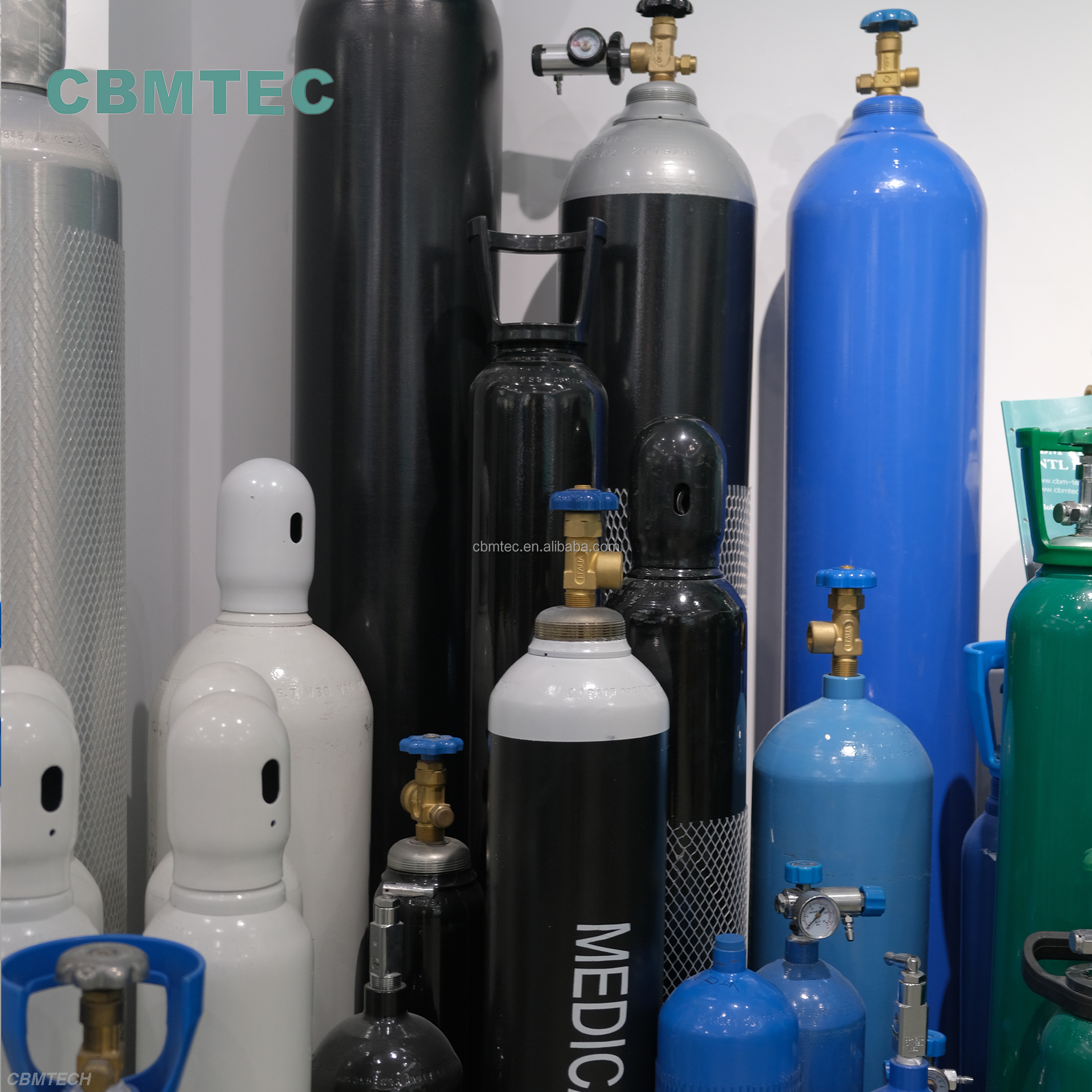

Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 120L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages :
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.
*NOTES:
-a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional;
-b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Spec. of 5L Oxygen Cylinders:
-OD=140mm;
-W. P. /T. P.: 15/25Mpa;
-(Normal)Wall Thickness: 4.5 mm;
-(Normal)Height: 830mm;
-(Normal)N. W.: 13.6kg;
-White as your preferred;
-W/ O2 valves CGA540, QF-2, & Handles(to-be-confirmed);
-Connecting Thread: PZ 27.8.
-Manufacturing Standard: ISO-9809-3.
| Type | Volume(L) | Working /TestPressure(Mpa) | Outer Dia (mm) | Wall Thickness(mm) | Length (mm) | Weight (kg) | Material | Standard |
| WMA219-20-15 | 20 | 15/25 | 219 | 5.7 | 715 | 28 | 37Mn | ISO9809 |
| WMA219-32-15 | 32 | 1075 | 39 | |||||
| WMA219-36-15 | 36 | 1195 | 42.5 | |||||
| WMA219-38-15 | 38 | 1245 | 45 | |||||
| WMA219-40-15 | 40 | 1305 | 46.5 | |||||
| WMA219-45-15 | 45 | 1455 | 52.5 | |||||
| WZA267-68-15 | 68 | 267 | 6.1 | 1500 | 74 | |||
| WZA267-70-15 | 70 | 1540 | 76 | |||||
| WGA232-40-20 | 40 | 20/30 | 232 | 5.5 | 1200 | 48.5 | 34CrMo4 | |
| WGA232-47-20 | 47 | 1385 | 55 | |||||
| WGA232-50-20 | 50 | 1460 | 58 |
5L (Outside Diameter 140mm)OEM Oxygen Cylinders for medical oxygen therapy system:
Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 120L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages :
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.
*NOTES:
-a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional;
-b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
