Cryogenic Liquid Gas Cylinders

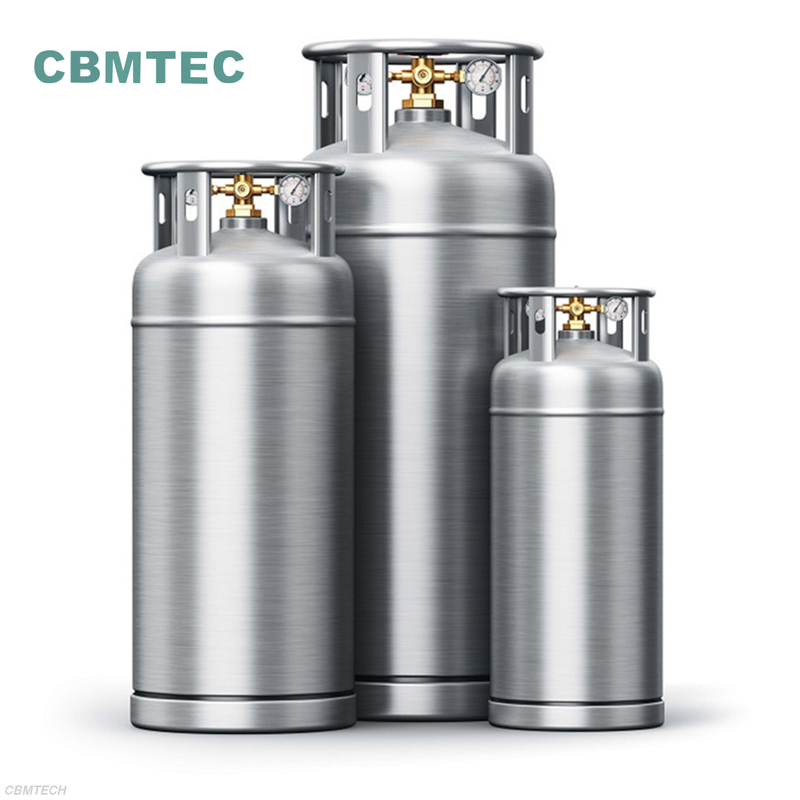

Industrial Cryogenic Liquid O2/N2/Helium Cylinders
Availability:
Quantity:
  • Series
  • CBMTECH
  • 73110090
  •

A variety of Industrial Cryogenic Liquid O2/N2/Helium Cylinders are available.

Product Description

Transportable Cryogenic Liquid Nitrogen Oxygen Dewar Cylinders for gas scientific research, medical health care and oil drilling.
Liquid Dewar cylinders are storage vessels that are specially designed and manufactured to accommodate the super cooled materials that are utilized in a wide variety of cryogenic applications. As these materials often exist in a gaseous state under normal atmospheric pressure and at room temperature, they are commonly referred to as 'liquefied gases' when pressure and temperature conditions have lowered them from the gaseous to the liquid state.
Cryogenics itself is the study of the nature and uses of materials that have been cooled to temperatures far below those encountered in nature or in normal working conditions. Though it is a continuously expanding field of applied science, applications for such super cooled or cryogenic materials have already been developed in the aerospace, medical, manufacturing, and computing fields. It is precisely because the uses, and demand, for cryogenic materials have increased dramatically in recent history that SEFIC offers several cryogenic cylinders that can accommodate commonly utilized super cooled liquids and gases like liquid oxygen, argon, carbon dioxide, nitrogen, and nitrous oxide.
Ref.More specific specifications on Liquid Nitrogen Tank:
Model NumberVolume
(L)
Neck Diameter
≤mm
Outer Diameter
≤mm
Height
≤mm
Empty Weught
≤Kg
Stored in Liquid
Nitrogen Days
Evaporation of Liquid
Nitrogen/Assumption
QualifiedSuperierQualifiedSuperier
YDS-22302243702.820250.120.1
YDS-22.5502243702.820250.120.1
YDS-33.15502244203.426310.120.1
YDS-66503054604.552630.120.1
YDS-1011.2503055506.3851100.120.09
YDS-10B11.2503055506.552640.2080.172
YDS-10-8011.2803055506.348570.250.2
YDS-10-12511.21253055506.325320.40.3
YDS-10-21011.2210305550713180.70.6
YDS-15165036560091341610.120.1
YDS-15B1650365600965800.2080.172
YDS-15-12516125365600942530.40.3
YDS-2021503656109.51702100.120.1
YDS-30325044667014.52542950.120.1
YDS-30B325044667014.51591910.240.2
YDS-30-80328044667014.51471740.260.22
YDS-30-1253212544667014.6901120.3710.3
YDS-30-210322104466701640500.70.6
YDS-3535.550446695172703100.120.1
YDS-38-8035.580446695171591870.250.2
YDS-35-12535.512544669517951250.3740.309
YDS-50B-505050500850221602000.3850.305
YDS-50B-805080500850221471890.40.3
YDS-50B-12550125500850221101340.4760.4
YDS-50B-2105021050085022506010.833
YDS-60B-2106021050090032637410.851
Technical Parameters on Liquid Dewar Gas Cylinders:
Storage Medium: liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide;
Volume: 175L/195L/210L/375L/410L/450L/495L;
Working pressure: 1.40MPa/ 2.0MPa.

DPL-175DPL-195DPL-210DPL-375DPL-410DPL-450
Dimensions





Diameter*Height(mm)508*1350508*1652508*1747900*1632900*1738900*1857
Working pressure(Psig)203203203203203203
Pressure Relief Valve(Psig)231230230231231231
Inner Container Bursting Disc(Psig)377377377377377377
Maximum Liquid Capacity(liters)175195210375410450
Usable Liquid Capacity(liters)166185197357390427
Nitrogen≤2.1%≤2.0%≤2.0%≤1.8%≤1.8%≤1.8%
Tare Weight(kg)111117123200212234
Weight of ContentsN/AN/AN/AN/AN/AN/A
Oxygen(kg)172191205369404442
Nitrogen(kg)121135145260284311
Argon(kg)208233250447488535
Liquid Carbon DioxideN/AN/AN/AN/AN/AN/A
Natural Gas737288N/AN/AN/A
*Brief Features:
-The face-to-face surfaces of the two walls of a Dewar flask are silver plated or polished to reduce heat radiation;
-The upper part or the neck of the inner wall is made of non-conductive materials to reduce heat transfer through solid materials;
-The Dewar bottle is widely used in liquefied gas production, storage, and transport;
-It is also a vacuum-insulated container commonly found in scientific research, medical health care and oil drilling.
