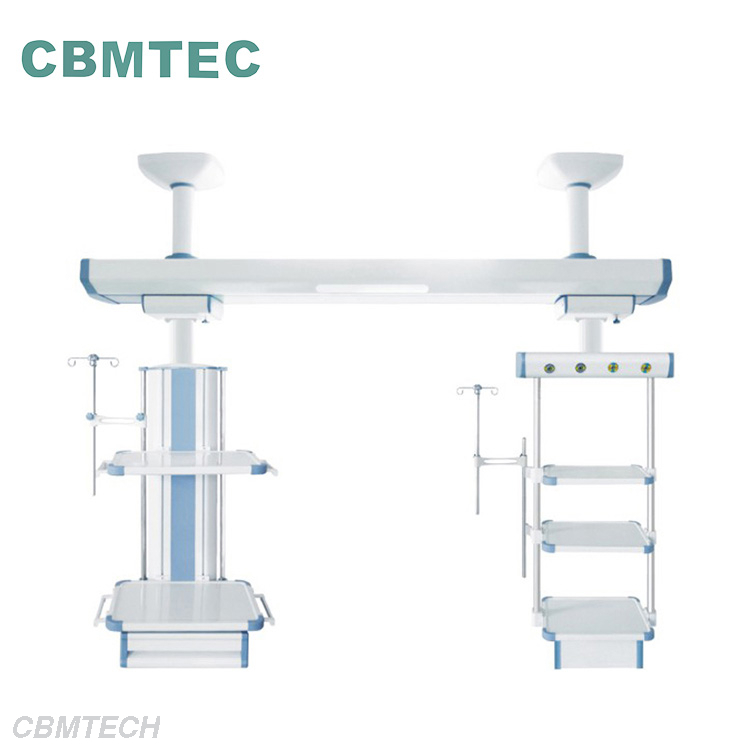

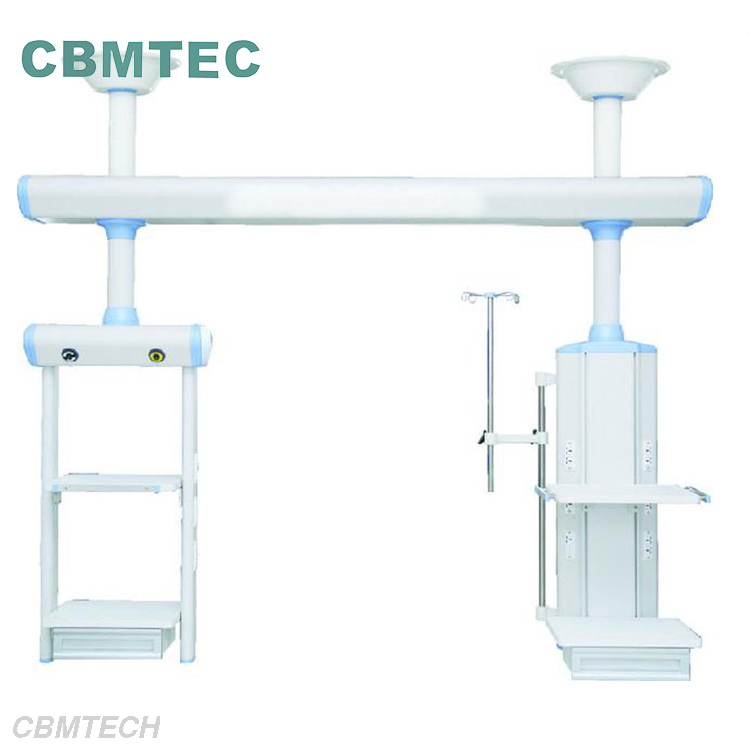

Dry and Wet Separation Ceiling Mounted Hospital ICU Bridge

Medical bridge suspersion unit is specially designed for ICU rooms,observing rooms and recovering room,All kinds of medical gases,electrical&instrument,network are all gathered on the control board.Light is equipped in the middle of the bridge.As your desire,it can be equipped with communication machine,monitor,video phone,background music,teaching and distance consultation system.
Availability:
Quantity:
  • CBMTECH

Dry and Wet Separation Ceiling Mounted Hospital ICU Bridge

ICU rotary arm bridge used in hospital ICU ward is a necessary medical rescue auxiliary equipment, mainly consisting of bridge, dry section and wet section. Characterized by the separation of the dry and the wet structures, the wet section is equipped with the flexible lifting infusion support and the infusion pump mount.The dry and the wet sectionsare equipped with a medical monitoring instrument platform which can be adjusted. The oxygen, air, attraction, strong or weak electricity, and network input terminal are arranged on the tower body reachable to the medical staff in the dry and wet sections. The wet section adopts the cantilever structure, improving the treatment space. The moving and rotating part uses the mechanical brake to prevent the drift, and lighting treatment lamp is installed in the center of the bridge to provide lighting solutions for clinical medical care. In addition, communication paging, surveillance, video telephone, background music, teaching and remote consultation systems can be selected to installed depending on your requirements.

2

1、Product features

*The cross beam and cabinet of  fower crane adopts imported high-strength Aluminum alloy of patent technology for the one-off extrusion molding,and the surface undergoes the primary oxidation treament.

*Aluminum molding tray with non-sip texture.

*Mechanical friction damping brake.

*Gas pipeline,Power supply and computer communication line are arranged without interference.

*The tower adopts German standard gas terminal(over 20000 of inserting and pulling out)

*Dry and wet areas are adopted the independent design.It is equipped with gas cabinet body.

*Transverse translation in dry and wet areas to meet various care requirements.

*Light is equipped in the middle of the bridge.

Specification

Basic configuration

*Ten power outlets

*one telephone outlet

*two internet outlets

*one compressed air

*two oxygen

*one suction gas(optional gases)

*Technical specification

*Separate dry and wet sections

*Dry and wet section can electrically move

*Light is equipped in the middle of bridge

*AIR/O2/VAC EACH TWO

*Ten power outlets

*two network outlet
