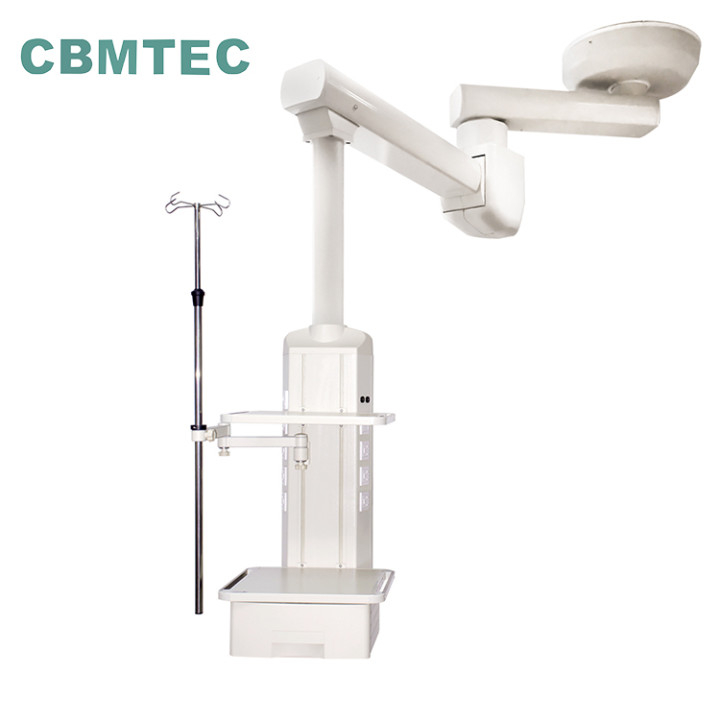

ICU Surgical Mounted Pendant In Hospital Operation Room Medical Ceiling Pendant

The single/double-arm mechanical medical endoscope pendant has a simple and compact structure and is easy to use. It is an ideal medical gas power supply, network output terminal and instrument carrying workstation for the operating room; the installation adopts the ceiling suspension mode, and the swing arm can rotate within 340 degrees. It is equipped with mechanical brakes to prevent drift, and the height of the equipment makes it easy for medical personnel to lift their hands. It is an indispensable medical auxiliary equipment in the operating room of small and medium-sized hospitals.
Availability:
Quantity:

ICU Surgical Mounted Pendant In Hospital Operation Room Medical Ceiling Pendant

 Specification

Arm length

500-1000 mm

Console height

600-1200mm

Power socket

8pcs sockets

Equipotential

1pc

Network socket

1pc

Gas terminal

Oxygens/2nos,air/2nos,Vac/2nos

Gas tube

Import gas pipeline

Platform

3pcs , size 550*420mm

Drawer

1pc

Working power

220V 50HZ 10A

Infusion support

Stainless steel infusion rack 1 set

Detial

*Ceiling Arm :Arm length 500-1000 mm (the length can be customized according to customer's require), up to 8 mm, the thickness of tower body rotation Angle: a minimum of 340 °.

*Shelving Unit:console height from 600mm-1200mm (can be customized according to customers requirements), rotation 340 degrees, gas-electric separation design.3pcs trays , size:550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side rails 10*25.Drawer 1pc, engineering plastic molding,automatic reset device.
