QF-7D2
/
8481804090

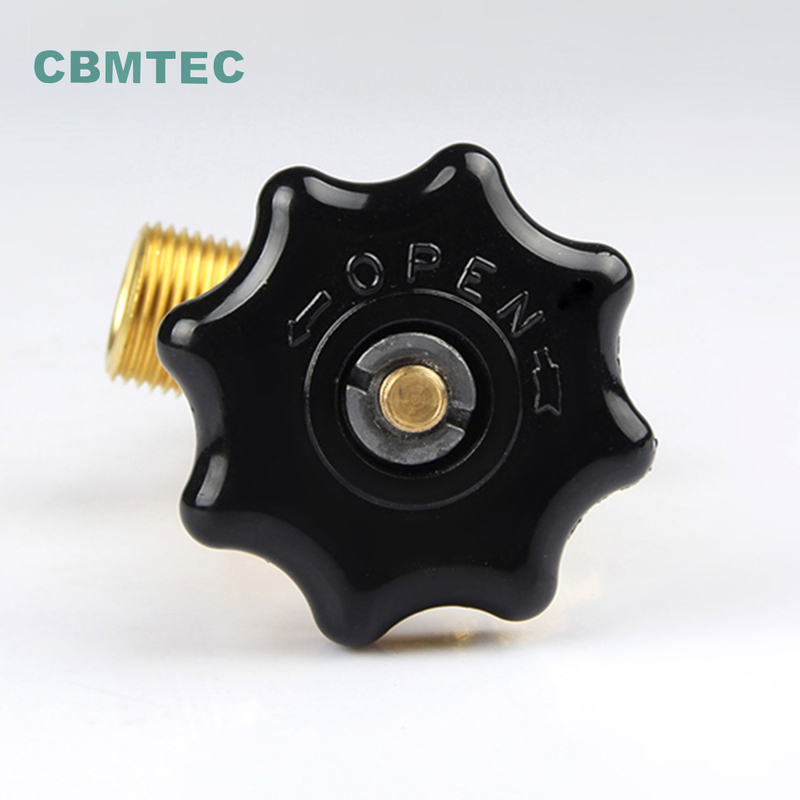

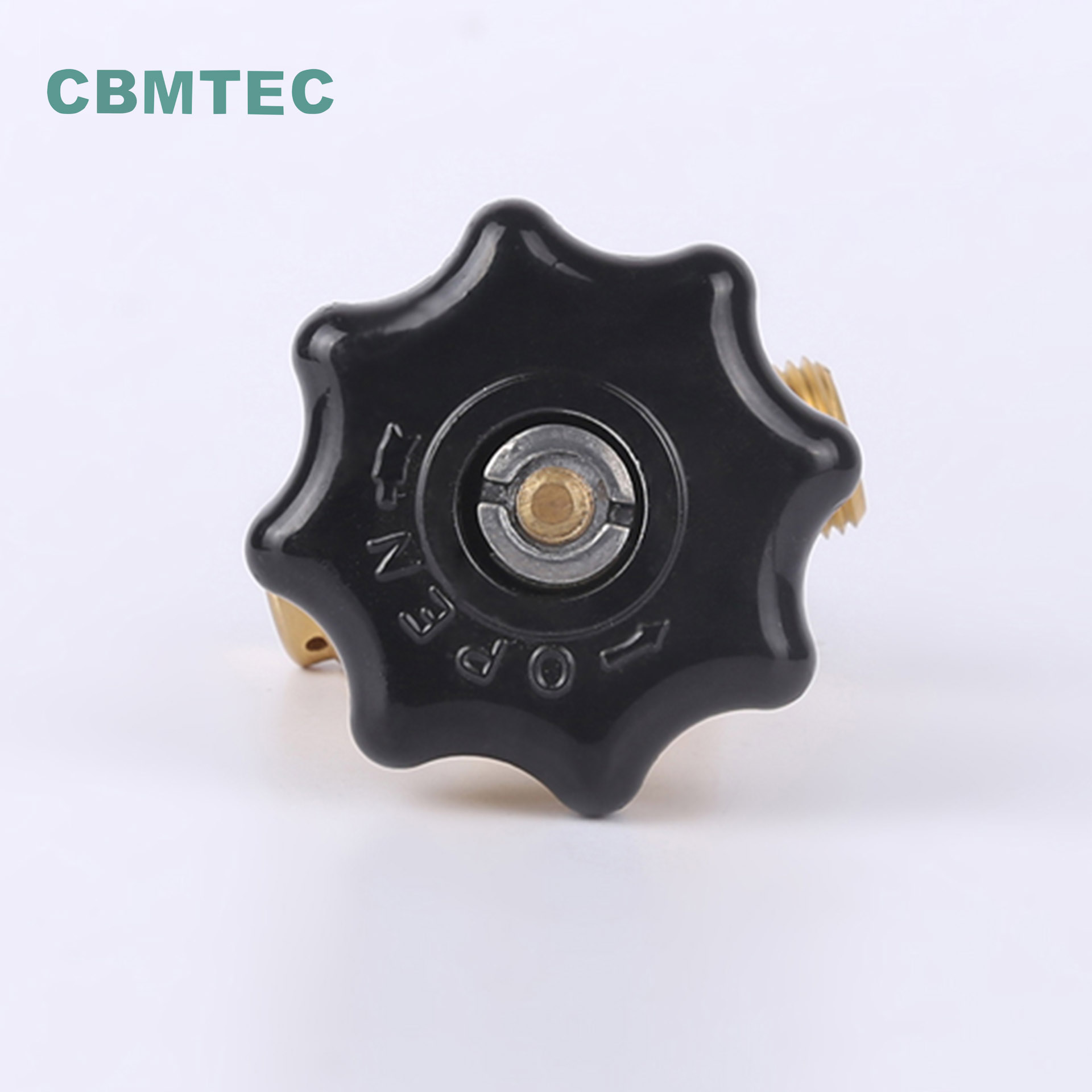

Bull-nose Oxygen Cylinder Valve QF-7D2,top-thread type fitting down-thread Oxygen Flowmeter Regulator.
Should you have any interests or some more info needed on our mafactured gas cylinders & gas valves,just pls feel free to contact us!
| NO. | Type No. | Product Name | Suitable medium | PN (Mpa) | DN (mm) | Outlet thread(mm) | Jiont thread to cylinder (mm) | Temp/pressure of safety device ( Mpa) |
| 1 | QF-7 | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 2 | QF-7A | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 3 | QF-7A1 | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8-14-LH | GB8335 PZ27.8 | |
| 4 | QF-7B | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 5 | QF-7C | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | 21±1.5 |
| 6 | QF-7D | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 7 | QF-7D1 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 8 | QF-7D2 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 9 | QF-7D3 | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8-LH | GB8335 PZ27.8 | |
| 10 | QF-7F | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | GB8335 PZ27.8 | |
| 11 | QF-7G | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead W22.5 X 1/14 | GB8335 PZ27.8 | |
| 12 | QF-7H | Brass Shaft coupling Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | Femal threead G5/8 | JIS B 8246 V1 Ø28 |
