TPED O2/N2/Argon/Helium Cylinders

Industrial TPED Gas Cylinders
Availability:
Quantity:
  • Series
  • CBMTECH
  • 73110090
  •

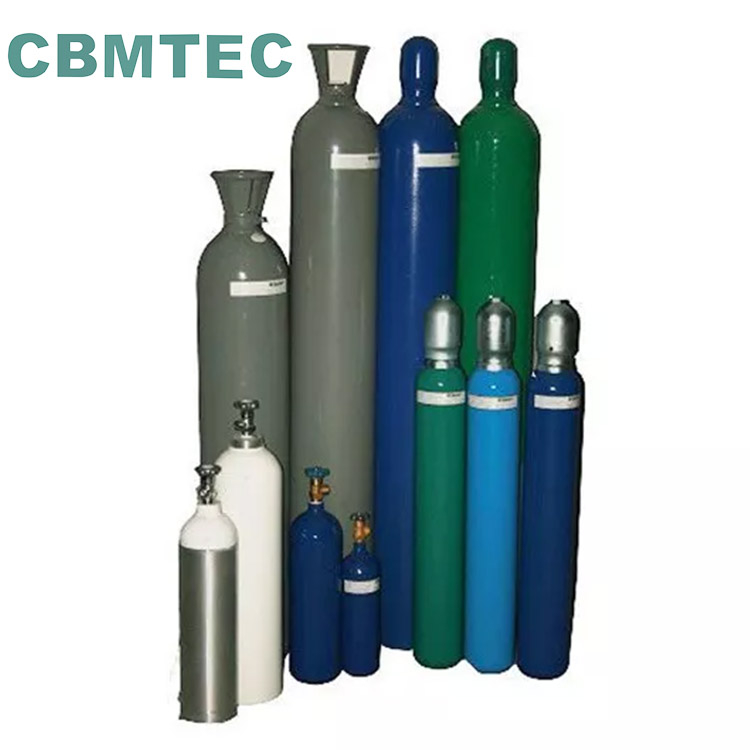

A variety of TPED O2/N2/Argon/Helium Cylinders are available.

Product Description

Factory-price O2/Argon/Helium/CO2 Gas Storage & Transportation Cylinders/ISO9809 Approved O2 Gas Storage & Transportation Cylinders series:

*Referenced main specs of Factory-price  Medical Oxygen Storage & Transportation Cylinders 10L:
Water Capacity 10L
Cylinder Weight 13.6±1kg
Outside Diameter 152mm
Service Pressure (Bar) 150bar
Test Pressure(Bar) 250bar
Certification ISO9809/GB5099
Head Protection Tulip Caps/Open Caps, or normal closed caps
After-Sales Service Provided Third-Party Support Available
Brand Name CBMTECH

-Standard: ISO9809/GB5099;
-Water capacity: 10 L;
-Outside diametre: 140 mm;
-Wall thickness: 3.6 mm;
-Length: 840 mm;
-Working pressure: 15 Mpa;
-Testing pressure: 25 Mpa;
-Material: 37Mn steel;
-Net weight (with cap & valve):13.6+kg;
-Thread of cylinder: inlet &outlet: PZ 27.8, also customized;
-Each cylinder shall be covered with a plastic white net;
-Each cylinder packed in individual carton box;
-Testing analysis reports can be supplied;
-Each cylinder needs to accept ball blasting, heat treatment.

Industrial Welding Argon/Helium Cylinders 20L, 150bar Working Pressure

We have too much advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved  Acetylene Cylinders(2L~60L).



ISO3807 Dissolved  Acetylene Cylinders 40L:
Type Outside
Diameter MM
Water
Capacity L
Height
(Without valve)
Weight(Without
valve,cap)
Working
Pressure MPa
Design Wall
Thickness MM
Material
Grades
ISO140-5-150 140 5 440 7.6 7.6 7.6 37Mn
ISO140-8-150 8 665 11
ISO140-10-150 10 830 13.5
ISO159-15-150 159 15 945 17.5 17.5 17.5 37Mn
ISO219-20-150 219 20 705 27.8 150 6.1 37Mn
ISO219-40-150 40 1305 47.8
ISO232-50-200 232 50 1450 57.8 200 5.8 34CrMo4
