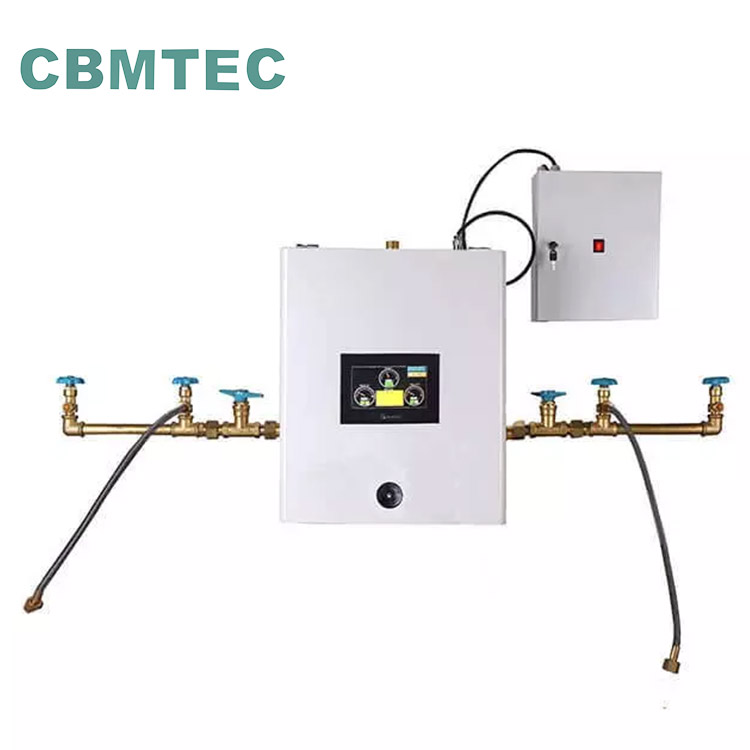

Automatic LED-type Oxygen Manifold System

Hospital Medical Automatic LED-type Oxygen Manifold System
Availability:
Quantity:
  • MS 400 Series
  • CBMTECH
  • General

Hospital Medical/Industrial Automatic LED-type Oxygen Manifold System. Automatic Manifolds for Medical Air & Nitrous Oxide are also available.

Product Description:

CBMTEC Medical Gas Automatic Manifold Systems are designed for automatic switching between two line gas sources.They can be switched automatically without any debugging by the operator, also they can work normally even when power off. All manifold systems can conform to NFPA99, HTM02-01 and 7396.

*Main specs:

Gas ServiceInter Pressure(Mp)Delivery Flow m3/h(SCFH)Delivery Pressure(MPa)Outlet ConnectionInter ConnectionPower
O215/20100(3530)0.553/4" connector (Screw:RC 3/4)
M33*2
(CUSTOMIZED)
Copper tube CGA Standard/Customized220V 50Hz
Air15/20100(3530)0.8Metal soft tube CGA
Standard/Customized
220V 50Hz
N2O15/2050(1765)0.5Metal soft tube CGA
Standard/Customized
220V 50Hz
CO215/2030(1060)0.8Metal soft tube CGA
Standard/Customized
220V 50Hz
Inert15/20100(3530)0.8Metal soft tube CGA
Standard/Customized
220V 50Hz

*General Features:

  • Separation of strong and weak electricity;

  • Can work normally when power off;

  • Pilot control to switch air circuit, pressure is stable;

  • 2 pcs pressure reduce regulator, 1 use 1 standby;

  • Temperature monitor;

  • PLC control, pressure is precise, having 485 signals for remote monitoring;

Ref. Manual Gas Manifold for gas delivery & supply system.
*Medical Gas Flow: 100m³ / h;
*Input pressure≤23Mpa;
*Output pressure: 0-4.5Mpa;
