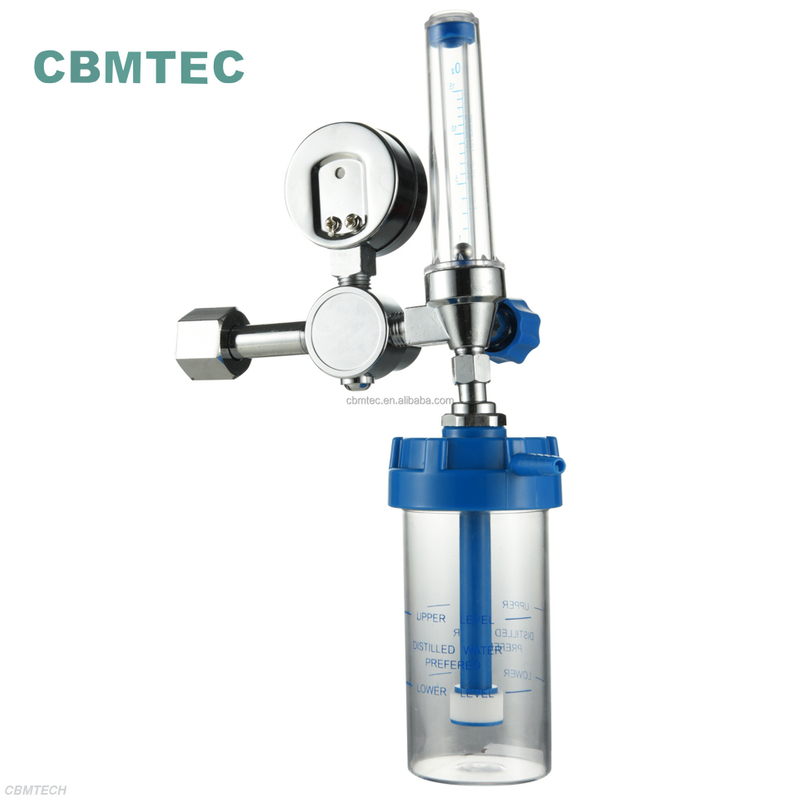

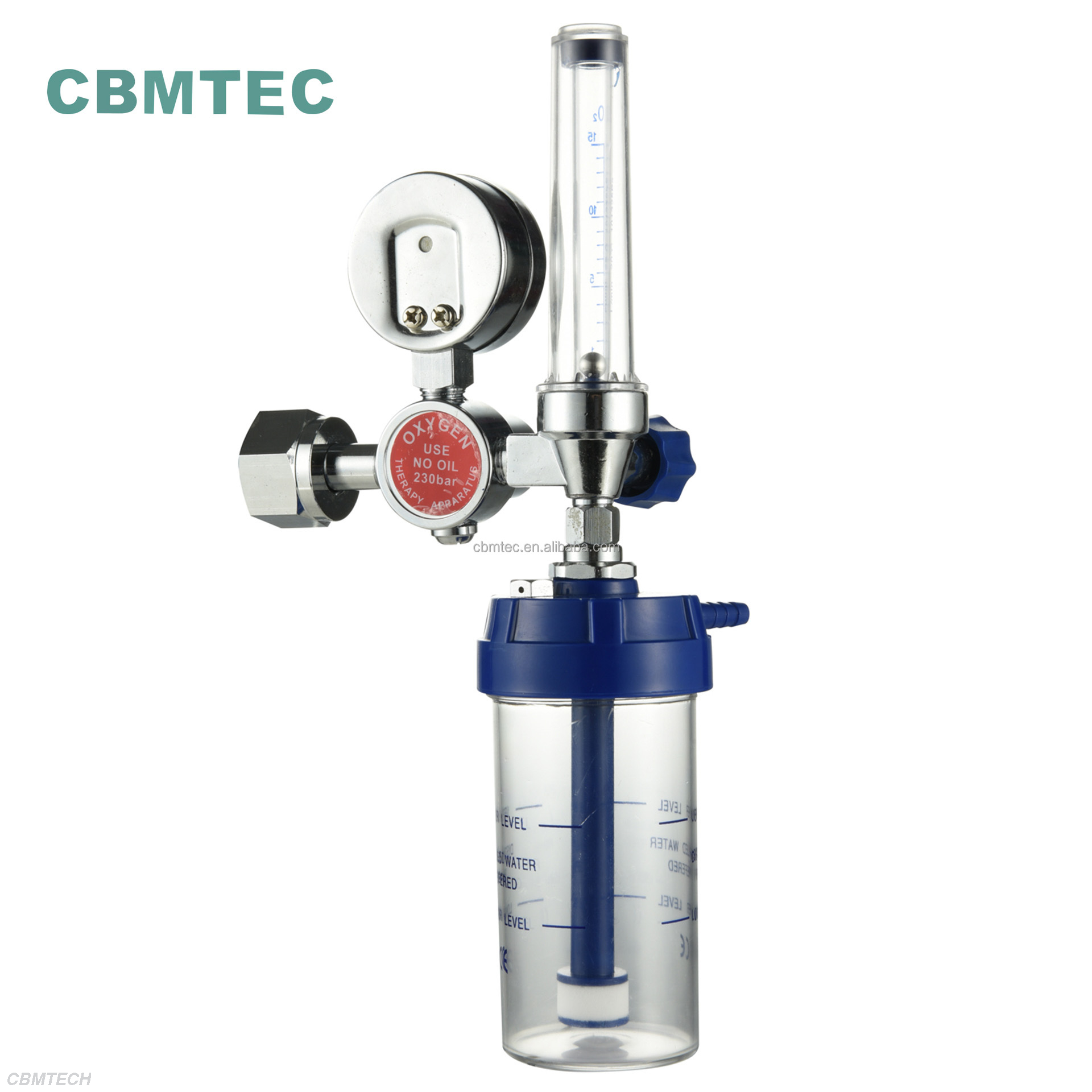

CE Approved Medical Oxygen Regulator

-CE Approved Medical Oxygen Cylinder Regulators;
-Material: Main brass;
-Turkish style,G 3/4-14-RH connection thread;
-With optional different types of reusable humidifier bottles.
-MOQ:50 pcs.
Color:
Quantity:
  • MT-907T
  • CBMTECH
  • 901920
  •

Medical oxygen cylinder regulators are connected with high pressure O2 gas cylinders to decrease the outlet pressure and supply a stable low pressure,widely serving Hospitals,Clinics, First Aids,Homes or places where oxygen breathing is needed for supporting lives.


*Normal Technical Descriptions of our CE approved Medical  Oxygen Regulators series:

-Structure: Piston type;

-Input Pressure: 200bar;
-Output Pressure: 4bar-5bar;
-Automatic discharge pressure of Safety Valves: 4.5bar± 0.5bar;
-Flowmeter Control Ranges: 0-10LPM/15LPM(OPTIONAL);
-Connecting thread:  3/4''G.

-Humidifier Bottle Capacity: 170ml/200ml (OPTIONAL)

-Packaging Info.: 10 pcs/CTN. (G.W./N.W.: 12KG /11KG );


*Main Features:

-CE 0120 approved;

-Chrome-plated Brass Mainbody;

-Precise flow ranges 0~10/0~15LPM with better visual PC tube for duriability and long-service life;

-Equipped with optional reusable polycarbonate humidifiers (121

-2'' pressure gauge for easy reading;

-For use with oxygen cylinders, Max. Intlet pressure: 200bar/230bar;

-BS/DIN/JIS/CGA standard inlet connections available.
