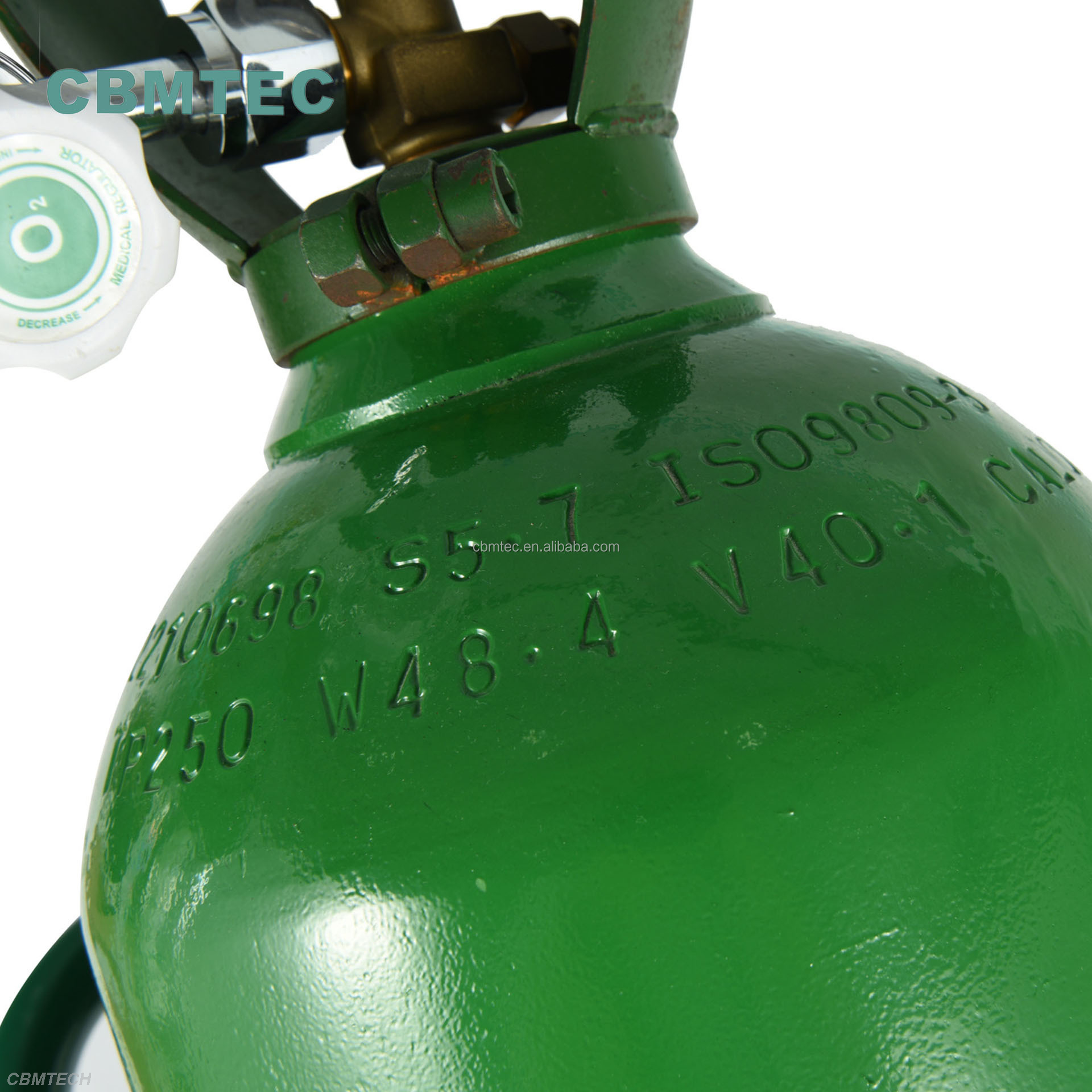

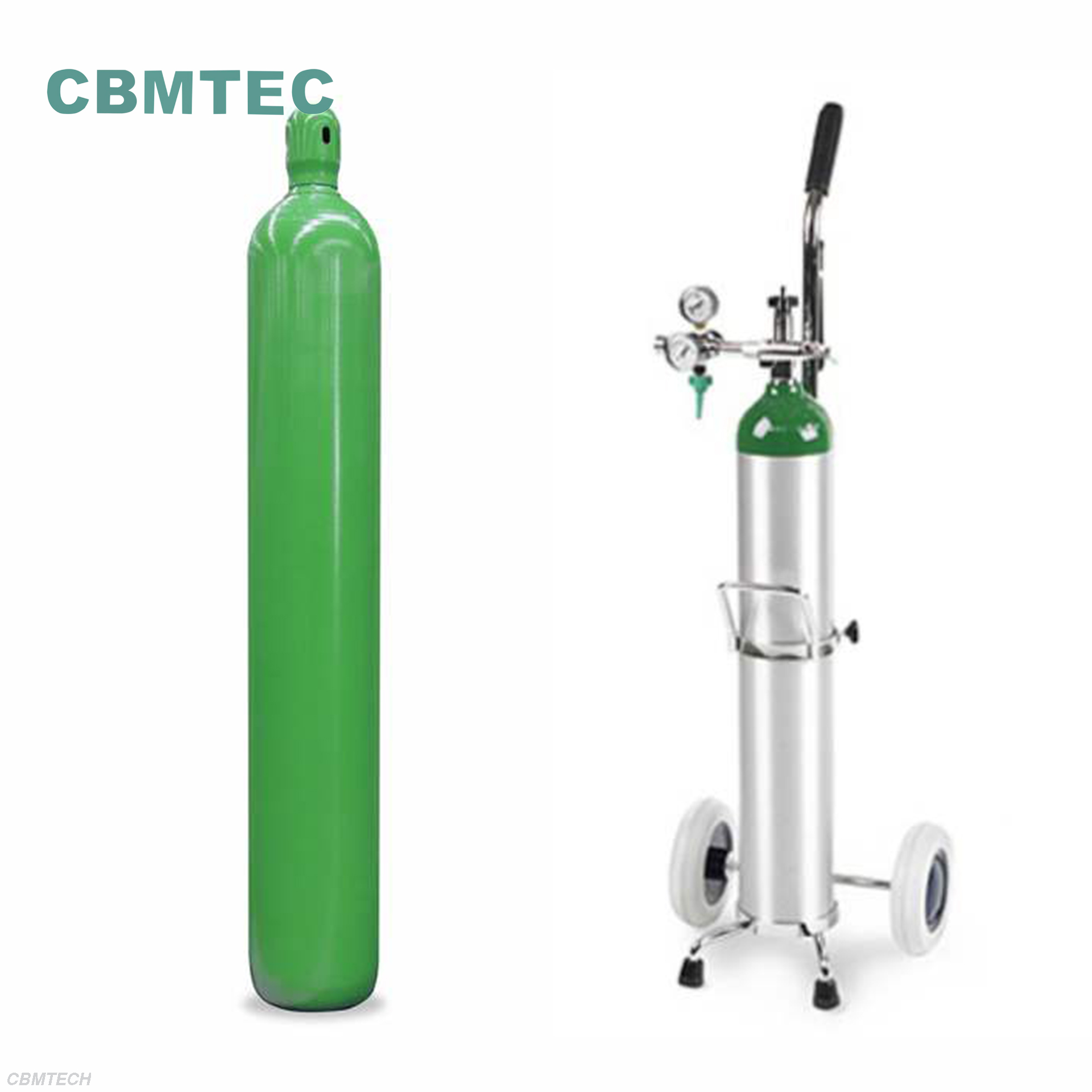

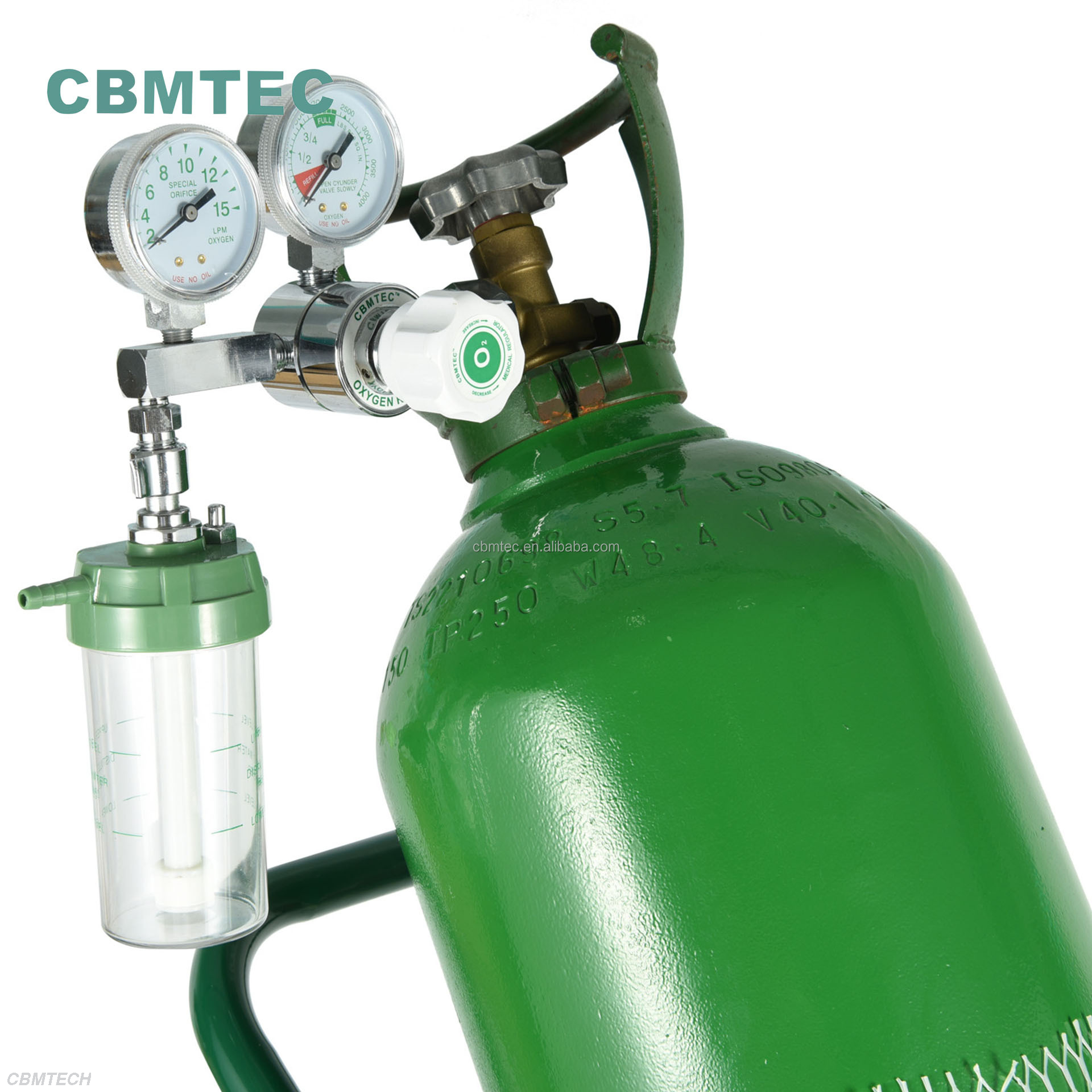

High Pressure Oxygen Cylinders 10L with Valve Guards

High Pressure Oxygen Cylinders 10L with Valve Guards
Quantity:
  • WMA140-10-150
  • CBMTECH
  • 73110090
  •

High Pressure Oxygen Cylinders 10L with Valve Guards:

Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 120L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.

Specs of 1.5M3(10L) Medical Oxygen Cylinder:
-OD=140mm;
-W. P. /T. P.: 15/25Mpa;
-(Normal)Wall Thickness: 4.5 mm;
-(Normal)Height: 830mm;
-(Normal)N. W.: 13.6kg;
-White as your preferred;
-W/ O2 valves CGA540, QF-2, & Handles(to-be-confirmed);
-Connecting Thread: PZ 27.8.
-Manufacturing Standard: ISO-9809-3.

Serial No.TypeOuter Dia(mm)Volume(L)Length(mm)Weight(kg)
1WMA108-1.4-151081.42352.8
2WMA108-1.8-151081.82853.3
3WMA108-2-151082.03103.6
4WMA121-3.2-151213.23835.7
5WMA121-4-151214.04706.9
6WMA140-4-151404.03706.8
7WMA140-5-151405.04357.9
8WMA140-6.3-151406.35259.4
9WMA140-7-151407.057310.1
10WMA140-8-151408.064811.3
11WMA152-7-151527.050010
12WMA152-8-151528.058611.2
13WMA140-10-1514010.083013.5
14WMA152-10-1515210.070513
15WMA159-10-1515910.065012.5
16WMA159-12-1515912.079014.9
17WMA159-15-1515915.094518
Working Pressure: 150bar    Testing Pressure: 250bar
Wall thickness: 3.7mm-4.5mm        Standard: ISO9809/GB5099

*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.

Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;

-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: we have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q.=50 PCS;
-7)Exporting experience: we have over 5 years' experience for exporting business.

What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.


Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
