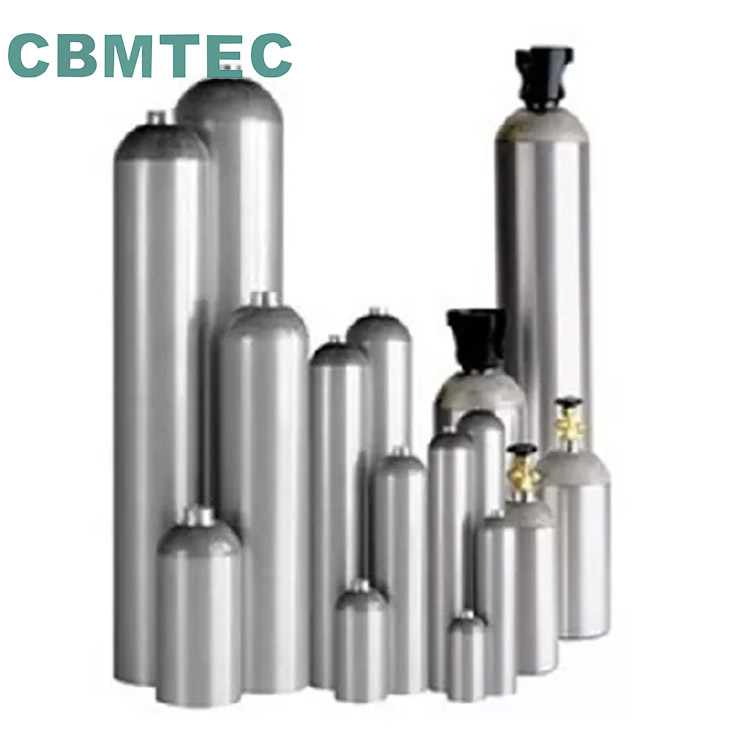

Industrial Aluminum Gas Cylinders for Calibration Gas Mixtures

Aluminum Calibration Gas Mixtures Cylinders
Availability:
Quantity:
  • Series
  • CBMTECH
  • 73110090
  •

A variety of industrial Aluminum Gas Cylinders for Calibration Gas Mixtures are available.

Product Description

Scuba Diving Tank:
A superior alloy technology makes a superior aluminum scuba tank.CBMTECH Gas Cylinders offers a broad range of high-pressure aluminum scuba cylinders, cold-extruded aluminum cylinders are ideal for Scuba tanks.
CBMTECH Cylinders offer the Following Advantages:
-1).Cylinders are made from high strength Aluminum Alloy.
-2).CBMTECH scuba cylinders are manufactured to meet or exceed all recognized international standards.
-3).CBMTECH scuba cylinders are cycle-tested in excess of 100,000 cycles at service pressure. Excess of 12000 cycles at test pressure.
-4).Minimum burst pressure tested to 2.5 times service pressure.
-5)Corrosion-resistant interior and exterior.
-6)Consistent weight and consistent thickness with damage resistant walls.
-7).Available in various painted and unpainted finishes.
Specific Application of different cylinders:
-1).Industrial Gases: Hydrogen chloride hcl,hydrogen sulfide H2S , Hydrogen H2, Oxygen 02, Nitrogen N2, Propane C3H4 , Ammonia NH3, Carbon dioxide C02,Sulfur dioxide SO2, Carbon Monoxide CO, CF4,C3H4-Propyne,NH3-Ammonia,C3F8,CH3Cl-Methyl Chloride,C3HF7-Heptafluoropropane,C2H40-Ethylene Oxide,C3F6,CHF3,C2H6-Ethane
-2).Medical Gases: Nitrous Oxide N20, Carbon Dioxide CO2, Oxygen O2 and Air
-3).Specialty Gases:Sulfur hexafluoride SF6,Ethylene C2H4,Hydrogen Sulide H2S,Tungsten Hexafluoride WF6, NO2 Nitrogen Dioxide, NO Nitric Oxide,SiH4Silane, BCl3 Boron Trichloride, HBr Hydrogen Bromide, BF3 Boron Trifluoride, NF3 Nitrogen Trifluoride
-4).Rare Gases: Argon, Helium, Neon, Xenon, Krypton
-5).Mixture Gases: NO/N2, He/N2, CH4/Ar, F2/He/Ne, B2H6/He, PH3/He

In addition to industrial gas cylinders, we also produce other types of gas cylinders.These cylinders are used to fill with permanent gases, liquefied petroleum gas or compressed natural gas to serve a wide application in chemical industry, metallurgical industry, mechanical industry, petroleum industries, electronic industry, building industry and in the fields of fire fighting, energy, food process, household, medical treatment, cryogenic soldering, mountaineering, diving, mining,scientific research & etc.
*More Descriptions of Medical Aluminum Cylinders:
-1) water capacity: 0.28L, 0.7L, 1L, 1.7L, 2L, 2.5L, 2.7L, 3.2L, 4L, 6L, 8L, 10L, 15L, 20L, 40L, 50L and etc;
-2) diameter: 59-232mm;
-3) height: 194-725mm;
-4) weight: 0.4-36kgs;
-5) service pressure: 15MPa, 20MPa
-6) related valve for choice.
Our Aluminum alloy gas cylinders can be refilled with rare, high pure, calibration and special gases. They are made of superior quality aluminum alloy and manufactured through the procedures of punching, drawing, heat treatment, CNC flow forming spinning, anodic oxidation treatment to the inner surface, etc. It is used to be filled and refilled with various kinds of gases, such as rare gases, high purity gases, standard gases, special gases, with a wide range of applications in the chemical industry, electronic industry, medical treatment, gas and coal mining fields, which is the ideal substitute for the steel cylinder. We also have the ability to design and produce the seamless aluminum alloy cylinders with special specifications and technical requirements.

BTW, high pressure seamless aluminium air cylinders are adopted to fill various compressed gas, including industrial specialty gases, pure gases, gas mixtures and air. (Such as Argon, Chlorine, Ethane, Helium, Hydrogen, Neon, Nitrogen, Oxygen, Nitrogen monoxide, Nitrous oxide and etc).
NoSpecificationOuter DiameterWater VolumeLengthWeight Working pressure
1LW-60-0.5-20-H60mm0.5L285mm0.59kg200bar
2LW-75-0.7-15-H75mm0.7L295mm0.85kg150bar
3LW-82-0.7-15-H82mm0.7L235mm0.9kg150bar
4LW-89-1.0-15-H89mm1.0L269mm1.2kg150bar
5LW-89-1.4-15-H89mm1.4L345mm1.4kg150bar
6LW-108-1.0-15-H108mm1.0L210mm1.3kg150bar
7LW-108-1.4-15-H108mm1.4L264mm1.6kg150bar
8LW-108-2.0-15-H108mm2.0L346mm2.1kg150bar
9LW-108-2.5-15-H108mm2.5L413mm2.5kg150bar
10LW-120-2.0-15-H120mm2.0L320mm2.7kg150bar
11LW-120-2.5-15-H120mm2.5L369mm3.0kg150bar
12LW-120-2.8-15-H120mm2.8L398mm3.2kg150bar
13LW-120-3.2-15-H120mm3.2L437mm3.5kg150bar
14LW-140-4.0-15-H140mm4.0L420mm4.2kg150bar
15LW-140-5.0-15-H140mm5.0L500mm4.9kg150bar
16LW140-6.0-15-H140mm6.0L580mm5.6kg150bar
17LW140-8.0-15-H140mm8.0L741mm7.2kg150bar
18LW140-5.0-20-H140mm5.0L525mm6.3kg200bar
19LW140-6.0-20-H140mm6.0L652mm7.98kg200bar
20LW-159-10.0-15-H159mm10.0L730mm8.8kg150bar
21LW-184-9.0-20-H184mm9.0L575mm12.0kg200bar
22LW-184-10-20-H184mm10.0L620mm12.9kg200bar
23LW-184-11-20-H184mm11.0L665mm14.2kg200bar
24LW-184-12-20-H184mm12.0L710mm15.4kg200bar
25LW-203-12-15-H203mm12.0L567mm11.8kg150bar
26LW-203-20-15-H203mm20.0L873mm17kg150bar
27LW-203-21.3-15-H203mm21.3L962mm19.9kg150bar
28LW-204-12-20-H204mm12.0L610mm16.5kg200bar
29LW-204-15-20-H204mm15.0L735mm18.7kg200bar
30LW-204-20-20-H204mm20.0L940mm23.4kg200bar
31LW-232-29.5-15-H232mm29.5L994mm30.2kg150bar
32LW-232-30.0-15-H232mm30.0L1010mm30.5kg150bar
33LW-232-33.4-15-H232mm33.4L1126mm31.3kg150bar
34LW-232-40.0-15-H232mm40.0L1340mm36.5kg150bar
35LW-232-20.0-20-H232mm20.0L750mm26.9kg200bar
36LW-232-26.0-20-H232mm26.0L921mm30.7kg200bar
37LW-232-30.0-20-H232mm30.0L1076mm36.4kg200bar
38LW-232-31.5-20-H232mm31.5L1096mm38kg200bar
39LW-232-40.0-20-H232mm40.0L1365mm44.1kg200bar
40LW-250-40.0-15-H250mm40.0L1150mm36.7kg150bar
41LW-250-46.4-15-H250mm46.4L1305mm38.7kg150bar
42LW-250-47.5-15-H250mm47.5L1340mm42.0kg150bar
43LW-250-50.0-15-H250mm50.0L1590mm39kg200bar
44LW-250-40.0-20-H250mm40.0L1227mm46.3kg200bar
45LW-250-50.0-20-H250mm50.0L1500mm56kg200bar
