Portable Shoulder-Bag Oxygen Cylinder Set.
Product Description
Portable Shoulder Bag-type Oxygen Supply System, Portable oxygen units, Portable Bag Type Oxygen Supply System/Bag-type Oxygen Cylinder Set, Medical Oxygen Cylinder & Regulator/Medical Oxygen Tank & Regulator/Medical Gas Oxygen Equipments for for medical Oxygen Supply System, oxygen intake devices.
*Medical Oxygen Units including:

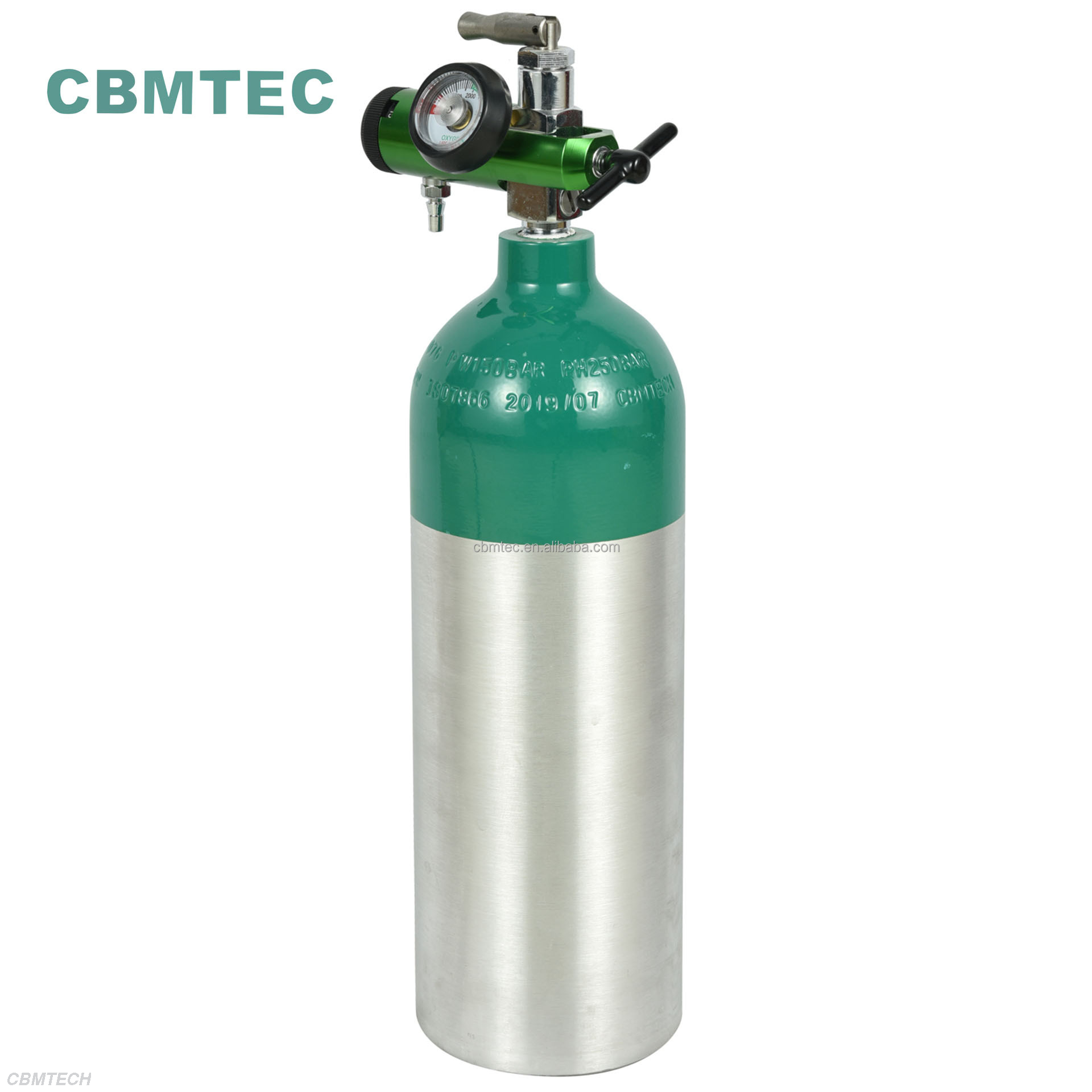

-1) CGA870 style oxygen regulator;
-2) Oxygen Cylinder valve CGA870;

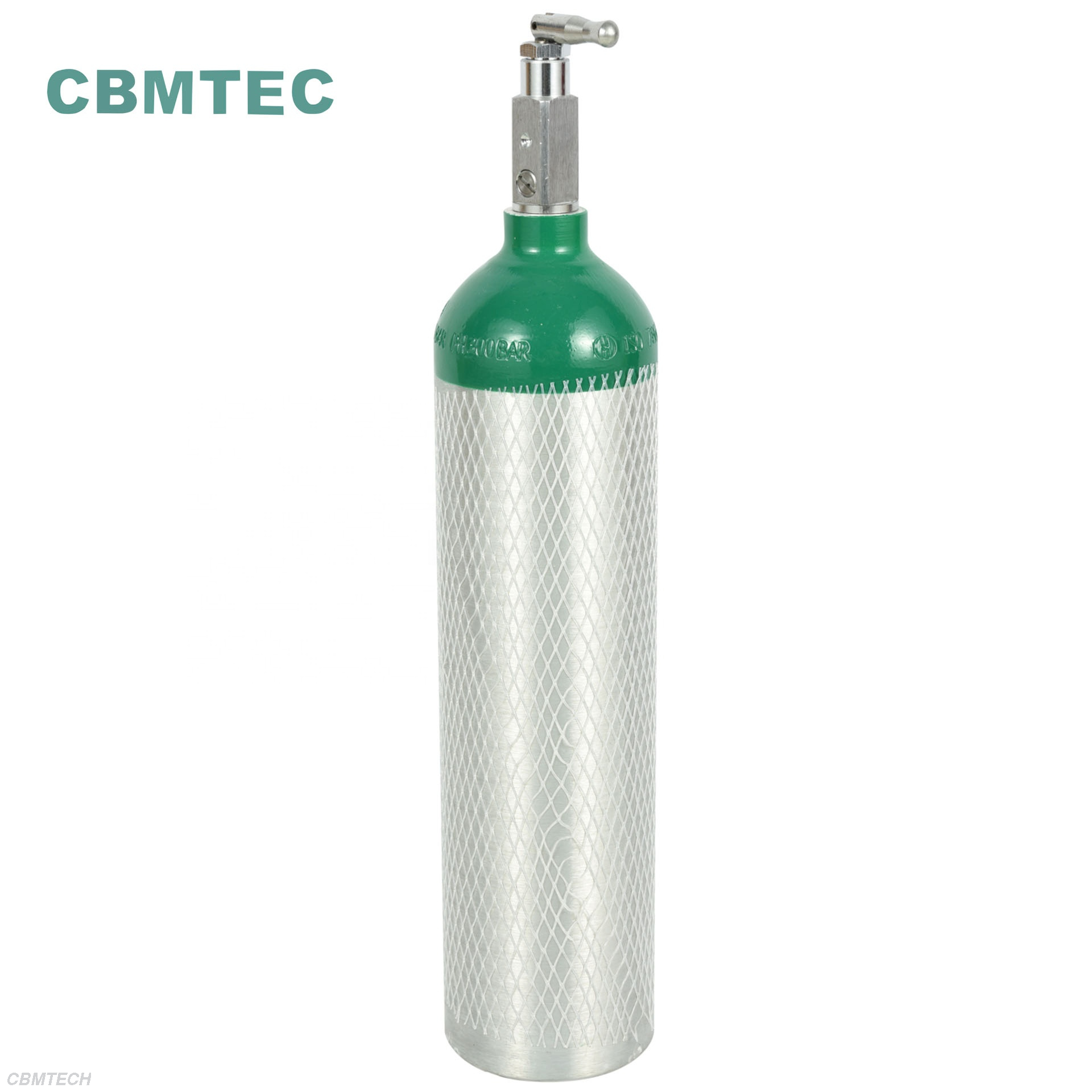

-3) Portable aluminum oxygen cylinders (2L, 2.5L, 3.2L, 4L...Upon request);
-4) High quatlity Shoulders bag( Different styles can be optional);
-5) Nasal Cannula with oxygen mask.*NOTES:Various types of oxygen valves, oxygen regulators & related medical gas items can be offerred upon further kind requirements.
Our Aluminum alloy gas cylinders can be refilled with rare, high pure, calibration and special gases. They are made of superior quality aluminum alloy and manufactured through the procedures of punching, drawing, heat treatment, CNC flow forming spinning, anodic oxidation treatment to the inner surface, etc. It is used to be filled and refilled with various kinds of gases, such as rare gases, high purity gases, standard gases, special gases, with a wide range of applications in the chemical industry, electronic industry, medical treatment, gas and coal mining fields, which is the ideal substitute for the steel cylinder. We also have the ability to design and produce the seamless aluminum alloy cylinders with special specifications and technical requirements.
| No. | Specifications | Outer Diameter | Water Volume | Length | Weight | Working pressure |
| mm | in | litre | cu in | mm | in | kg | lb | bar |
| 1 | LW-60-0.5-20-H | 60 | 2.4 | 0.5 | 30.5 | 285 | 11.2 | 0.59 | 1.3 | 200 |
| 2 | LW-75-0.7-15-H | 75 | 3 | 0.7 | 42.7 | 295 | 11.6 | 0.85 | 1.9 | 150 |
| 3 | LW-82-0.7-15-H | 82 | 3.2 | 0.7 | 42.7 | 235 | 9.2 | 0.9 | 2 | 150 |
| 4 | LW-89-1.0-15-H | 89 | 3.5 | 1.0 | 61.0 | 269 | 10.59 | 1.2 | 2.6 | 150 |
| 5 | LW-89-1.4-15-H | 89 | 3.5 | 1.4 | 85.4 | 345 | 13.6 | 1.4 | 3.1 | 150 |
| 6 | LW-108-1.0-15-H | 108 | 4.3 | 1.0 | 61.0 | 210 | 8.3 | 1.3 | 2.9 | 150 |
| 7 | LW-108-1.4-15-H | 108 | 4.3 | 1.4 | 85.4 | 264 | 10.4 | 1.6 | 3.5 | 150 |
| 8 | LW-108-2.0-15-H | 108 | 4.3 | 2.0 | 122.0 | 346 | 13.6 | 2.1 | 4.6 | 150 |
| 9 | LW-108-2.5-15-H | 108 | 4.3 | 2.5 | 152.5 | 413 | 16.3 | 2.5 | 5.5 | 150 |
| 10 | LW-120-2.0-15-H | 120 | 4.7 | 2.0 | 122.0 | 320 | 12.6 | 2.7 | 5.9 | 150 |
| 11 | LW-120-2.5-15-H | 120 | 4.7 | 2.5 | 152.5 | 369 | 14.5 | 3 | 6.6 | 150 |
| 12 | LW-120-2.8-15-H | 120 | 4.7 | 2.8 | 170.8 | 398 | 15.7 | 3.2 | 7 | 150 |
| 13 | LW-120-3.2-15-H | 120 | 4.7 | 3.2 | 195.2 | 437 | 17.2 | 3.5 | 7.7 | 150 |
| 14 | LW-140-4.0-15-H | 140 | 5.5 | 4.0 | 244.0 | 420 | 16.5 | 4.2 | 9.3 | 150 |
| 15 | LW-140-5.0-15-H | 140 | 5.5 | 5.0 | 305.0 | 500 | 12 | 4.9 | 10.8 | 150 |
| 16 | LW140-6.0-15-H | 140 | 5.5 | 6.0 | 366.0 | 580 | 22.8 | 5.6 | 12.3 | 150 |
| 17 | LW140-8.0-15-H | 140 | 5.5 | 8.0 | 488.0 | 741 | 39.2 | 7.2 | 15.9 | 150 |
| 18 | LW140-5.0-20-H | 140 | 5.5 | 5.0 | 305.0 | 525 | 20.7 | 6.3 | 13.9 | 200 |
| 19 | LW140-6.0-20-H | 140 | 5.5 | 6.0 | 366.0 | 652 | 25.7 | 7.98 | 17.6 | 200 |
| 20 | LW-159-10.0-15-H | 159 | 6.3 | 10.0 | 610.0 | 730 | 28.7 | 8.8 | 19.4 | 150 |
| 21 | LW-184-9.0-20-H | 184 | 7.2 | 9.0 | 549.1 | 575 | 22.6 | 12 | 26.4 | 200 |
| 22 | LW-184-10-20-H | 184 | 7.2 | 10.0 | 610.0 | 620 | 24.4 | 12.9 | 28.4 | 200 |
| 23 | LW-184-11-20-H | 184 | 7.2 | 11.0 | 671.1 | 665 | 26.2 | 14.2 | 31.3 | 200 |
| 24 | LW-184-12-20-H | 184 | 7.2 | 12.0 | 732.2 | 710 | 28 | 15.4 | 33.9 | 200 |
| 25 | LW-203-12-15-H | 203 | 8 | 12.0 | 732.2 | 567 | 22.3 | 11.8 | 26 | 150 |
| 26 | LW-203-20-15-H | 203 | 8 | 20.0 | 1220.3 | 873 | 34.4 | 17 | 37.4 | 150 |
| 27 | LW-203-21.3-15-H | 203 | 8 | 21.3 | 1299.6 | 962 | 37.9 | 19.9 | 43.8 | 150 |
| 28 | LW-204-12-20-H | 204 | 8 | 12.0 | 732.2 | 610 | 24 | 16.5 | 36.3 | 200 |
| 29 | LW-204-15-20-H | 204 | 8 | 15.0 | 915.2 | 735 | 28.9 | 18.7 | 41.2 | 200 |
| 30 | LW-204-20-20-H | 204 | 8 | 20.0 | 1220.3 | 940 | 37 | 23.4 | 51.5 | 200 |
| 31 | LW-232-29.5-15-H | 232 | 9.1 | 29.5 | 1799.9 | 994 | 39.1 | 30.2 | 66.5 | 150 |
| 32 | LW-232-30.0-15-H | 232 | 9.1 | 30.0 | 1830.4 | 1010 | 39.8 | 30.5 | 67.2 | 150 |
| 33 | LW-232-33.4-15-H | 232 | 9.1 | 33.4 | 2037.8 | 1126 | 44.3 | 31.3 | 68.9 | 150 |
| 34 | LW-232-40.0-15-H | 232 | 9.1 | 40.0 | 2440.5 | 1340 | 52.8 | 36.5 | 80.4 | 150 |
| 35 | LW-232-20.0-20-H | 232 | 9.1 | 20.0 | 1220.3 | 750 | 29.5 | 26.9 | 59.3 | 200 |
| 36 | LW-232-26.0-20-H | 232 | 9.1 | 26.0 | 1586.3 | 921 | 36.3 | 30.7 | 67.6 | 200 |
| 37 | LW-232-30.0-20-H | 232 | 9.1 | 30.0 | 1830.4 | 1076 | 43.9 | 36.4 | 80.2 | 200 |
| 38 | LW-232-31.5-20-H | 232 | 9.1 | 31.5 | 1921.9 | 1096 | 43.1 | 38 | 83.7 | 200 |
| 39 | LW-232-40.0-20-H | 232 | 9.1 | 40.0 | 2440.5 | 1365 | 53.7 | 44.1 | 97.1 | 200 |
| 40 | LW-250-40.0-15-H | 250 | 9.8 | 40.0 | 2440.5 | 1150 | 45.3 | 36.7 | 80.8 | 150 |
| 41 | LW-250-46.4-15-H | 250 | 9.8 | 46.4 | 2831.0 | 1305 | 51.4 | 38.7 | 85.2 | 150 |
| 42 | LW-250-47.5-15-H | 250 | 9.8 | 47.5 | 2898.1 | 1340 | 52.8 | 42 | 92.5 | 150 |
| 43 | LW-250-50.0-15-H | 250 | 9.8 | 50.0 | 3050.6 | 1590 | 62.6 | 39 | 85.9 | 200 |
| 44 | LW-250-40.0-20-H | 250 | 9.8 | 40.0 | 2440.5 | 1227 | 48.3 | 46.3 | 101.9 | 200 |
| 45 | LW-250-50.0-20-H | 250 | 9.8 | 50.0 | 3050.6 | 1500 | 59.1 | 56 | 123.3 | 200 |
| tem Model | Water Capacity | Outside Diameter | Length | Weight | Working Pressure |
| Lts / Cu in | mm / in | mm / in | kg / lbs | bar / psi |
| M2 | 0.3 | 0.6 | 63.5 | 2.5 | 145 | 5.7 | 0.3 | 0.6 | 153 | 2216 |
| M4 | 0.7 | 1.5 | 81.5 | 3.2 | 221 | 8.7 | 0.7 | 1.5 | 153 | 2216 |
| M6 | 1 | 2.3 | 81.5 | 3.2 | 300 | 11.8 | 1 | 2.3 | 153 | 2216 |
| ML6 | 1.2 | 2.5 | 111 | 4.4 | 198 | 7.8 | 1.3 | 2.9 | 139 | 2015 |
| ML7 | 1.4 | 3 | 111 | 4.4 | 231 | 9.1 | 1.5 | 3.2 | 139 | 2015 |
| M9 | 1.7 | 3.8 | 111 | 4.4 | 277 | 10.9 | 1.7 | 3.7 | 139 | 2015 |
| MD | 2.9 | 6.4 | 111 | 4.4 | 424 | 16.7 | 2.4 | 5.4 | 139 | 2015 |
| M22 | 3.9 | 8.5 | 133 | 5.2 | 414 | 16.3 | 3.7 | 8 | 153 | 2216 |
| ME | 4.6 | 10.2 | 111 | 4.4 | 645 | 25.4 | 3.6 | 7.8 | 139 | 2015 |
| M60 | 10.5 | 23.2 | 184 | 7.25 | 582 | 22.9 | 10.1 | 22.3 | 153 | 2216 |
| M90 | 15.7 | 34.7 | 184 | 7.25 | 828 | 32.6 | 13.7 | 30.3 | 153 | 2216 |
| M122 | 21.4 | 47.1 | 203.2 | 8 | 919 | 36.2 | 17.9 | 39.5 | 153 | 2216 |
| M150 | 28.9 | 63.7 | 203.2 | 8 | 1194 | 47 | 22.1 | 48.8 | 139 | 2015 |
