RYL250-40(Red)
CBMTECH
73110090

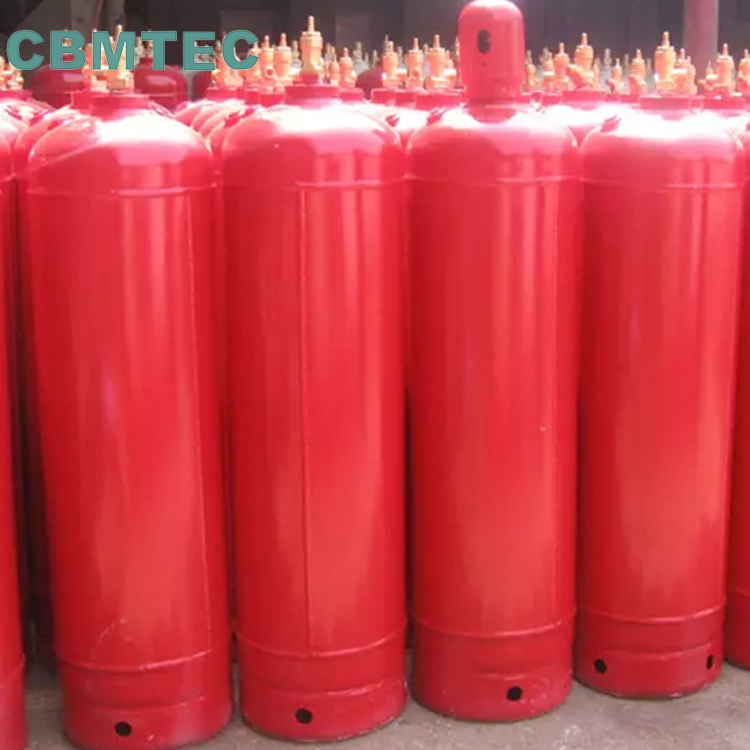

40L/7kg ISO3807 Acetylene Cylinders,fire red color,equipped with C2H2 valves 510 & caps/valve guards,perfect for industrial welding uses.
Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of cutting,welding,illumination,chemical analysis,military projects and so on.There are too many advantages of safety, energy conservation,convenience, little pollution so and ao fourth.
Our products are welded by high grade and low alloy steel plate ,all C2H2 cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.The products have the advantages of high porosity,much filling gas and so on.Our manufactured acetylene cylinders have the stable quality,safe economy.
Should you any interests or some more info needed on our Acetylene Gas Cylinders & accessaries, just pls feel free to contact us!
| Nominal Capacity | 40L | |
| Nominal Diameter | 250mm | |
| Limited Filling Pressure(15c) | 1.52Mpa | |
| Hydrostatic Test Pressure | 5.2Mpa | |
| Air Test Pressure | 3 Mpa | |
Material properties | Compressive Strength | ≥1.8N/mm2 |
| Porosity | 90~92% | |
| Volume Density | ≤270g/L | |
| Shoulder Axia Gap | ≤2.5mm | |
| Solvent | acetone | |
| Filling Gas Quantity | About7.2kg approx7.2kg | |
| Environmental Temperature | under | |
40L/7kg ISO3807 Acetylene Cylinders,fire red color,equipped with C2H2 valves 510 & caps/valve guards,perfect for industrial welding uses.
Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of cutting,welding,illumination,chemical analysis,military projects and so on.There are too many advantages of safety, energy conservation,convenience, little pollution so and ao fourth.
Our products are welded by high grade and low alloy steel plate ,all C2H2 cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.The products have the advantages of high porosity,much filling gas and so on.Our manufactured acetylene cylinders have the stable quality,safe economy.
Should you any interests or some more info needed on our Acetylene Gas Cylinders & accessaries, just pls feel free to contact us!
| Nominal Capacity | 40L | |
| Nominal Diameter | 250mm | |
| Limited Filling Pressure(15c) | 1.52Mpa | |
| Hydrostatic Test Pressure | 5.2Mpa | |
| Air Test Pressure | 3 Mpa | |
Material properties | Compressive Strength | ≥1.8N/mm2 |
| Porosity | 90~92% | |
| Volume Density | ≤270g/L | |
| Shoulder Axia Gap | ≤2.5mm | |
| Solvent | acetone | |
| Filling Gas Quantity | About7.2kg approx7.2kg | |
| Environmental Temperature | under | |
