LZM-15ZT
CBMTECH

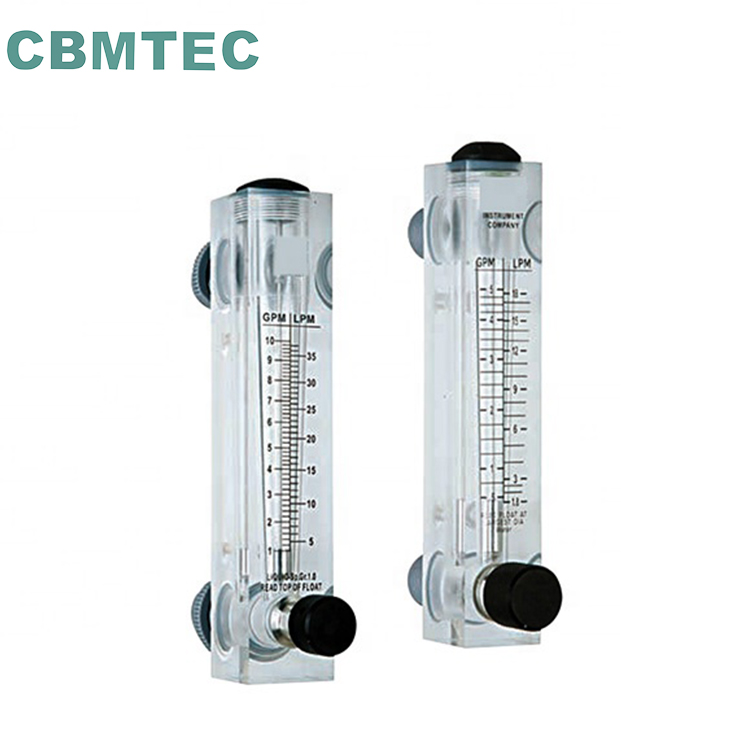

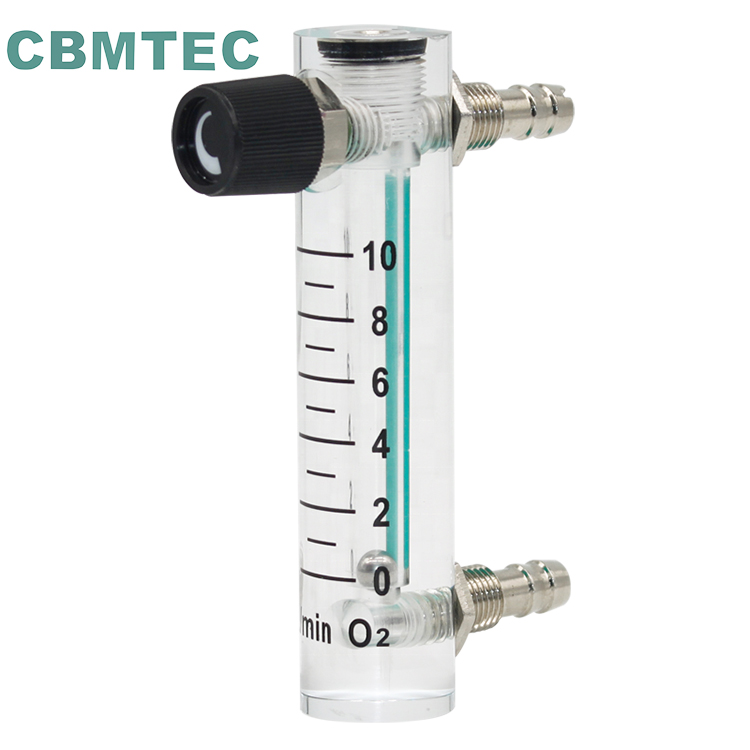

Acrylic Adjustable Flowmeters
Ⅰ Product Description：
*Acrylic moulded compact version for gas measurement.very much suitable for built-in use for equipments;
*Though machined acrylic meter body,highly polished to a clear finish;
*Quick delivery and offering at a low price,employing acrylic body enabled to design compact,simpl and clea;
*Direct reading permanent scale;
*Valve or without valve is optional;
1、Product features
*One piece machined and polished acrylic meter body;
*Acceptable for outdoor installation(direct sunlight okay);
*Bulkhead nuts attach to inside panel;

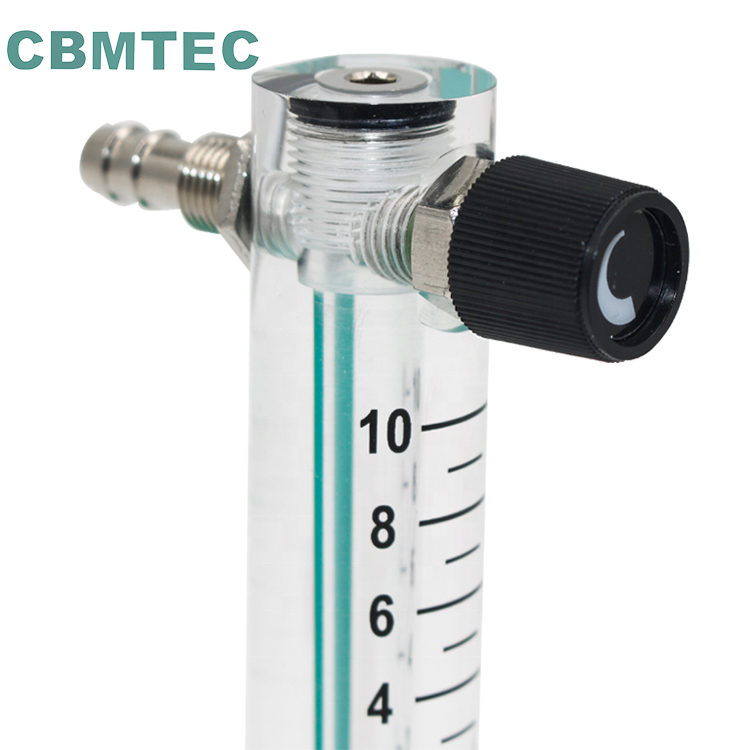

*Available adjustable valve (flow control) easy to assemble;
*This flowmeter is widely used in water treatment, medical equipment, oxygen generator;
*This flowmeter has beautiful appearance, light weight, non-fragile and long service life;
*Thread joint and panel-mounted fittings province ease of installation Economical and durable;
Ⅱ Specification：
Product Name： | Acrylic adjustable flowmeters |
Model Number： | LZM-15ZT |
Brand： | CBMTECH |
Place of origin： | Zhejiang，China |
Medium： | Water or Gas |
Accuracy： | ±4% |
Material: | Acrylic |
Flow range： | 0.5-32Nm3/h |
Customized support: | OEM, ODM, OBM |
Leader and float： | Stainless Steel 316 |
Screw thread: | ZG1/2”BSPT |
Fitting: | PP or PVC or Stainless steel |
Model | Measure Range | Screw thread | Accuracy | ||
GPM (Liquid) | LPM (Liquid) | Nm3/h (Gas) | |||
LZM-15ZAT | 15-150LPH | 0.1-1 0.16-1.2 0.3-3 0.4-4 | ZG1/2”BSPT | ±4% | |
LZM-15ZT | 10-100LPH | 0.6-6 1-10 1.6-16 2.5-25 4-40 | |||
16-160LPH | |||||
25-250LPH | |||||
0.1-1 | 0.5-4 | ||||
0.2-2 | 1-7 | ||||
0.3-3 | 1-11 | ||||
0.5-5 | 2-18 | ||||
LZM-25ZT | 2-10 | 10-35 | 20-100 40-160 40-250 | ZG1”BSPT | |
4-14 | 15-50 | ||||
6-20 | 20-70 | ||||
10-35 | 30-130 | ||||
10-40 | 30-150 | ||||
15-45 | 50-170 | ||||
Model | Size（mm） | |||||||
A | B | C | D | E | F | G | H | |
LZM-15ZT | 175 | 32 | 168 | 35 | 25 | 76 | 25 | 127 |
LZM-15ZAT | 157 | 32 | 150 | 35 | 25 | 60 | 25 | 127 |
LZM-25ZT | 234 | 45 | 226 | 46 | 33 | 100 | 37 | 160 |
