CBMTECH
Oxygen Generator Specification
Item | Unit | CBM-3L | CBM-5L | CBM-7L | CBM-10L | CBM-15L | ||
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 | ||
Oxygen concentration | % | 90%±3% | ||||||
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 150-200 | 180L/Min | ||
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.18 | 0.15-0.2 | 0.18-0.25 | 0.35 | ||
Pressure(outlet) | Mpa | 0.06-0.08 | ||||||
Temperature | ºC | indoor temperature | ||||||
Relative humidity | % | ≤ 70%±10% | ||||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ||
Dimension | mm | 200×290 | 200×410 | 200×470 | 200×500 | 200×880 | ||
Net weight | kg | 14 | 17.85 | 19.1 | 21.3 | 32.5 | ||
Oxygen generators are divided into two categories: industrial oxygen generator and civil oxygen generator. Civil oxygen generators are commonly used in medical, higher requirements for purity. Industrial oxygen generator generally required purity over 90%. In welding, chemical industry, water treatment, aquaculture and so on a wide range of fields has a very important role.

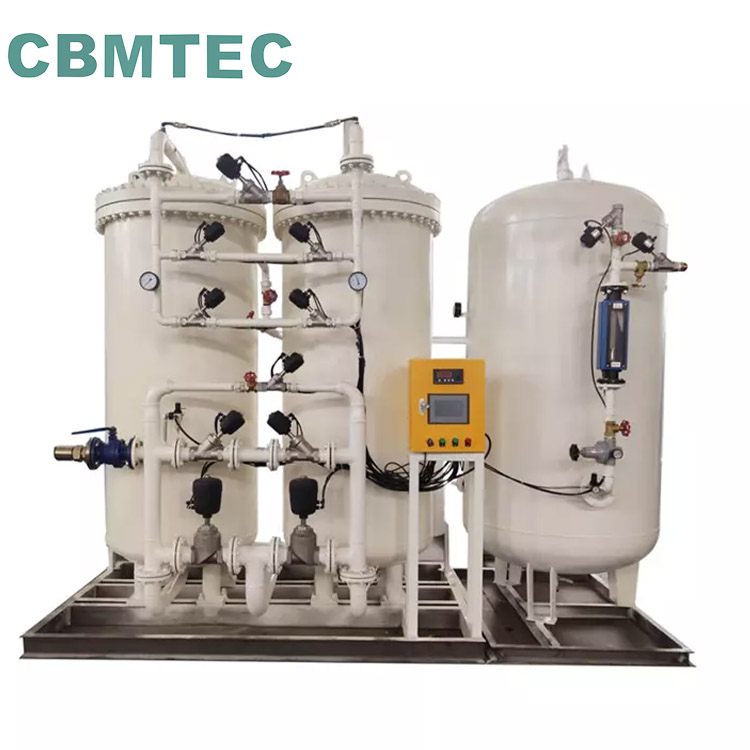

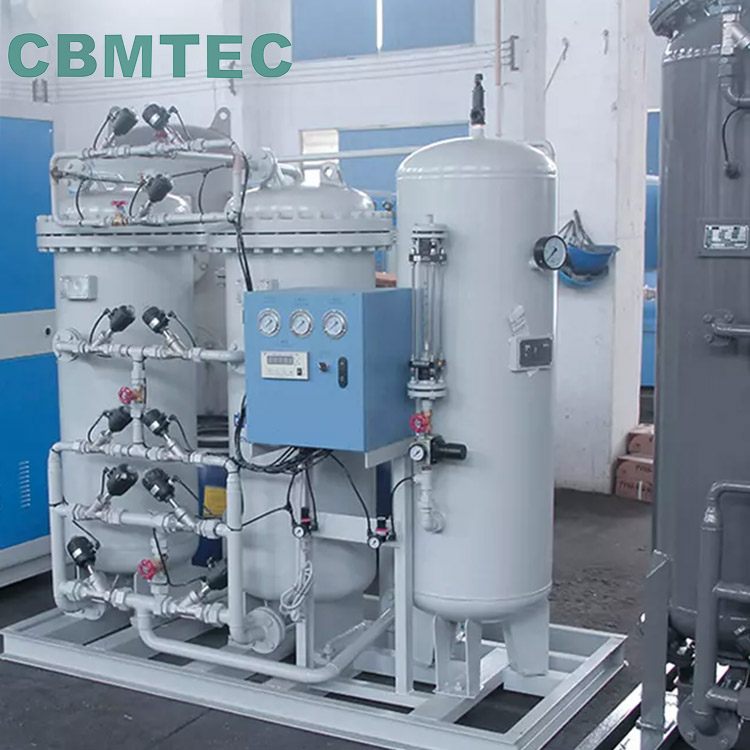

The compressed air passes through the air purification system to remove the impurities, such as oil, water and dust, and into the adsorption tower with zeolite molecular sieve. The nitrogen, carbon dioxide and water vapor in the air are adsorbed in large quantities by molecular sieves, and oxygen and nitrogen are separated because of the high diffusion rate of oxygen. When the nitrogen and other impurities in the adsorption tower reach saturation, the pressure is reduced and the zeolite molecular sieve is regenerated and reused. The two adsorption towers are operated under the control of PLC and continuously produce high quality oxygen.
Technical characteristics
-1).The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.
-2).Perfect process design and best use effect;
-3).Modular design is designed to save land area.
-4).The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.
-5)Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow;
-6)Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
-7)It has many functions of fault diagnosis, alarm and automatic processing.
-8)Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages :
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.
*NOTES:
-a). Various types of HP gas cylinders,cylinder valves,cylinder caps,valve guards can be optional;
Anyway,should you have any intersts or some more info needed on our acetylene gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
