CBMTECH
Ⅰ Product Description：
Important Quality Control

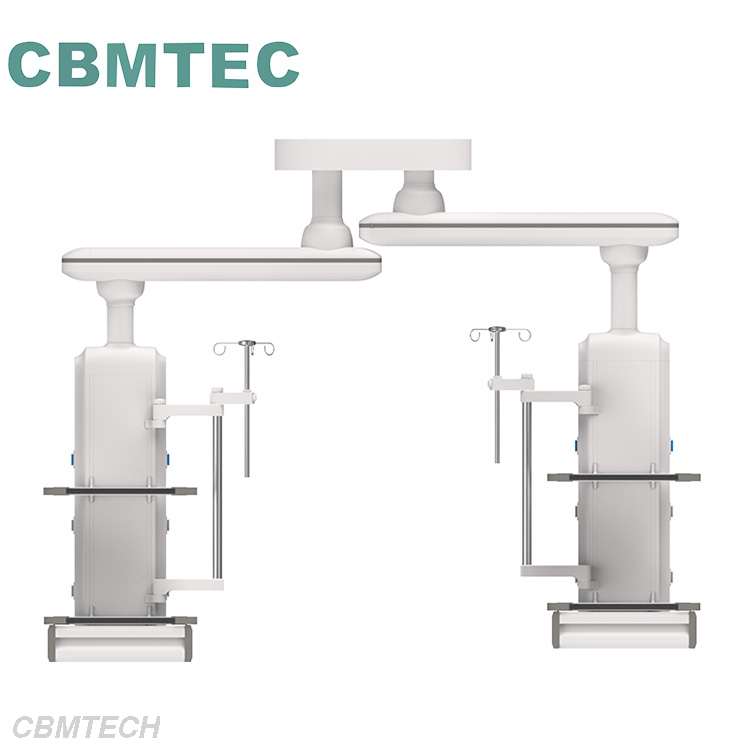

* The design of bridge hanging style saves ground space; the whole bridge pendant is fully sealed, no sharp angle to prevent the impact.
* The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 300kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.
* The pneumatic brake system, using compressed air to brake hanging arms and medical pendants, one press to release the brake.
* Medical pendant rotation angle 340°, built-in rotation limit device to prevent drift.
* The single rotating arm cover 1000mm treatiment radius, using dislocation height installation, can be used flexibly during treatment.
* The length of IV pole is 600mm, can be retractable, with four hooks, single hook can bear 4 kg.
* Silent self-priming track, no damage after 10,000 times push-pull tests, and the handle position is integrally formed by pressing with mould.
* The size of the table top is 450*500mm, and the height of table surface can be adjusted. The table top is made of aluminum alloy panel with iron square tube inside, can bear≥50KG；with external aluminum alloy hanging frame.
Ⅱ Specification
Parameter | Category |
Material | Aluminum |
Suspension system | hanging arm is 340° |
Welding | 360° full smooth welding |
Ⅲ Details Images
*Appearance Design
The design of double hanging arms style saves ground space;the whole bridge pendant is fully sealed ,no sharp angle to preven the impact.
*Painting
Imported plastic powder ,electrostatic paninting process ,painting thickness 0.12mm,brightness 60°,paint can resist 50kg impact.
*Welding
Panasonic Robot ensure 360°full smooth welding.
*Material
The tensile strength of aluminum alloy frame is more than 295MPa，some connecting parts are made of cast iron≥200MPa，and the net load is more than 300kg；one-off extrusion molding，and the surface undergoes the primary oxidation treatment.
