WMA219-40-150/CO2
CBMTECH
73110090

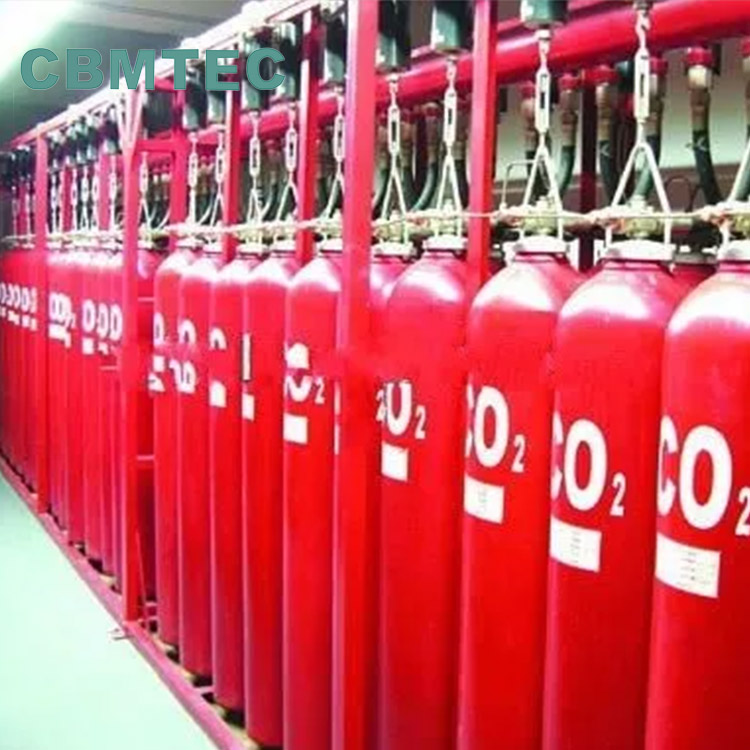

CBMTECH CO2 Steel Cylinders:
The CO2 Cylinder are all made by high quality seamless steel pipe,consistent height, smoothly painting, and excellent properties, which is widely used for steel cutting, welding, electronic, medical and other fields.and are supposed to be used repeatedly for keeping argon which is mainly used for steel cutting, welding, electronic, medical and so on.
Type | ISO9809 CO2 cylinder | Outside diameter | 229mm |
Water capacity | 40L | Height | 1250mm |
Working pressure | 200Bar | Storage gas | 12M3 |
Test pressure | 300Bar | Weight | 47kg |
Design wall thickness | 5.2mm | Material | 34CrMo4 |
Color | Generally red or as customers' demand | ||
Filling medium | carbon dioxide | ||
Packing | 1.bulk loading; 2.packed in plastic woven net; 3.packed in wooden pallets; 4.as required. | ||
About CBMTECH | As a China gas cylinder manufacturer, CBMTECH offers Oxygen Gas Cylinder, Nitrogen Gas Cylinder, Argon Gas Cylinder, CO2 Gas Cylinder, Hydrogen Gas Cylinder, Helium Gas Cylinder, Acetylene gas cylinder, CO2 Cartridge and Aluminum Cylinder … CE/TUV certified. |
*Ref. main specs of EN1964 standard 40 Liter steel gas cylinders:
-1). Water capacity: 40 Liter; Mat.: 34CrMo4;
OD= 229 mm; W. P: 200bar; Wall thickness: 5.2 mm; G. W.: ~47kg;
Height: 1, 250 mm (W/O cylinder cap);
-2). Color: BLUE(NEGOTIABLE)
-3). Connecting thread:
-4). Applied standard: EN1964;
-5). Packing: Each with nylon bag or as preferred(based on bilateral agreement).
*NOTES:
-1). WMA-Concave Bottom WMT-Convex Bottom;
-2). Hydraulic test pressure: 25Mpa or 30Mpa;
-3). Working test pressure: 15Mpa or 20Mpa;
-4). Various types of gas cylinders accessaries, say gas cylinder valves, cylinder caps, gas regulators can be optional.
Serial No. | Type | Outer Diameter (mm) | Working Pressure(MPa) | Volume(L) | Design Wall Thickness(mm) | Length (mm) | Weight (kg) | Material |
1 | EN1964 108-3.4-174 | 108 | 174 | 3.4 | 2.1 | 490 | 4 | 34CrMo4 |
2 | EN1964 108-3.1-223 | 108 | 223 | 3.1 | 2.7 | 470 | 4.5 | |
3 | EN1964 140-6.8-174 | 140 | 174 | 6.8 | 580 | 7.5 | ||
4 | EN1964 140-6.1-223 | 140 | 223 | 6.1 | 3.5 | 530 | 8 | |
5 | EN1964 152-10.2-174 | 152 | 174 | 10.2 | 2.9 | 710 | 11.1 | |
6 | EN1964 152-9.1-223 | 152 | 223 | 9.1 | 3.7 | 675 | 9.7 | |
7 | EN1964 204-10-166.7 | 204 | 166.7 | 10 | 3.8 | 460 | 18 | |
8 | EN1964 204-13.4-166.7 | 204 | 13.4 | 570 | 23 | |||
9 | EN1964 204-20-166.7 | 204 | 20 | 800 | 28 | |||
10 | EN1964 204-26.8-166.7 | 204 | 26.8 | 1040 | 33 | |||
11 | EN1964 204-10-200 | 204 | 200 | 10 | 4.6 | 470 | 19 | |
12 | EN1964 204-13.4-200 | 204 | 13.4 | 580 | 24 | |||
13 | EN1964 204-20-200 | 204 | 20 | 810 | 29 | |||
14 | EN1964 204-26.8-200 | 204 | 26.8 | 1050 | 36 | |||
15 | EN1964 204-40-200 | 204 | 40 | 1510 | 48 | |||
16 | EN1964 229-40-166.7 | 229 | 166.7 | 40 | 4.8 | 1250 | 50 | |
17 | EN1964 229-50-166.7 | 229 | 50 | 1510 | 58 | |||
18 | EN1964 229-40-200 | 229 | 200 | 40 | 5.2 | 1250 | 53 | |
19 | EN1964 229-45-200 | 229 | 45 | 1370 | 57 | |||
20 | EN1964 229-50-200 | 229 | 50 | 1510 | 59 | |||
21 | EN1964 229-40-200 | 229 | 40 | 5.7 | 1250 | 55 | ||
22 | EN1964 229-45-200 | 229 | 45 | 1370 | 58 | |||
23 | EN1964 229-50-200 | 229 | 50 | 1510 | 62 | |||
24 | EN1964 267-60-200 | 267 | 60 | 6.2 | 1370 | 74 | ||
25 | EN1964 267-68-200 | 267 | 68 | 1510 | 81 | |||
26 | EN1964 267-70-200 | 267 | 70 | 1530 | 83 | |||
27 | EN1964 267-60-166.7 | 267 | 166.7 | 60 | 6.5 | 1370 | 73 | 34Mn2V |
28 | EN1964 267-67.5-166.7 | 267 | 67.5 | 1510 | 81 | |||
29 | EN1964 267-70-166.7 | 267 | 70 | 1530 | 82 | |||
30 | EN1964 267-60-166.7 | 267 | 60 | 6.8 | 1370 | 74 | ||
31 | EN1964 267-67.5-166.7 | 267 | 67.5 | 1510 | 82 | |||
32 | EN1964 267-70-166.7 | 267 | 70 | 1530 | 83 | |||
33 | EN1964 279-60-200 | 279 | 200 | 60 | 6.4 | 1280 | 78 | 34CrMo4 |
34 | EN1964 279-70-200 | 279 | 70 | 1460 | 85 | |||
35 | EN1964 279-80-200 | 279 | 80 | 1640 | 92 |
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our medical gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
