WMA267-68-150/CO2
CBMTECH
73110090
General

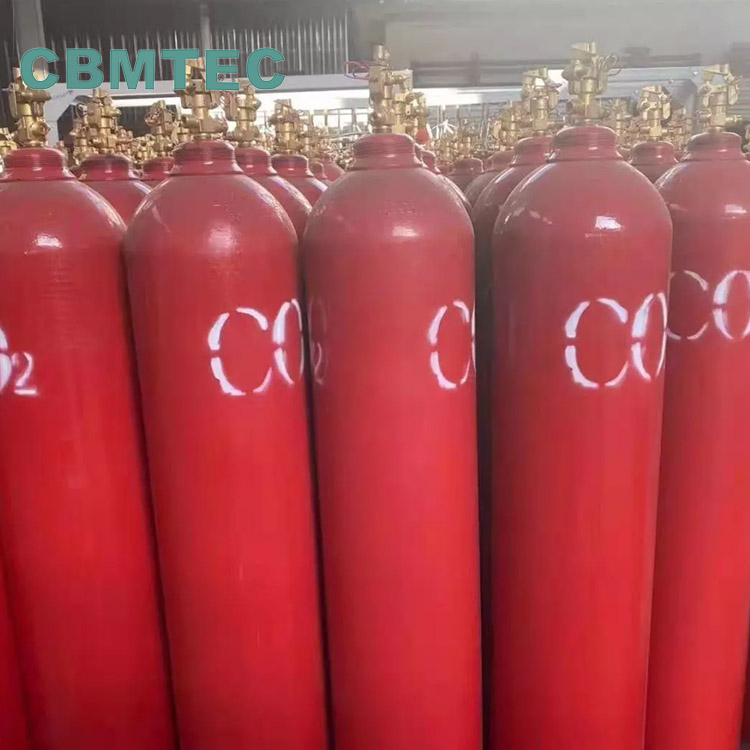

68L Carbon Dioxide Cylinders,45KG CO2 for firefighting uses.
Type | ISO9809 CO2 cylinder | Outside diameter | 267mm |
Water capacity | 80L | Height | 1710mm |
Working pressure | 200Bar | Storage gas | 12M3 |
Test pressure | 300Bar | Weight | 84kg |
Design wall thickness | 6.2mm | Material | 34CrMo4 |
Color | Generally red or as customers' demand | ||
Filling medium | carbon dioxide | ||
Packing | 1.bulk loading; 2.packed in plastic woven net; 3.packed in wooden pallets; 4.as required. | ||
About CBMTECH | As a China gas cylinder manufacturer, CBMTECH offers Oxygen Gas Cylinder, Nitrogen Gas Cylinder, Argon Gas Cylinder, CO2 Gas Cylinder, Hydrogen Gas Cylinder, Helium Gas Cylinder, Acetylene gas cylinder, CO2 Cartridge and Aluminum Cylinder … CE/TUV certified. |
Serial No. | Type | Outer Diameter (mm) | Working Pressure(MPa) | Volume(L) | Design Wall Thickness(mm) | Length (mm) | Weight (kg) | Material |
1 | EN1964 108-3.4-174 | 108 | 174 | 3.4 | 2.1 | 490 | 4 | 34CrMo4 |
2 | EN1964 108-3.1-223 | 108 | 223 | 3.1 | 2.7 | 470 | 4.5 | |
3 | EN1964 140-6.8-174 | 140 | 174 | 6.8 | 580 | 7.5 | ||
4 | EN1964 140-6.1-223 | 140 | 223 | 6.1 | 3.5 | 530 | 8 | |
5 | EN1964 152-10.2-174 | 152 | 174 | 10.2 | 2.9 | 710 | 11.1 | |
6 | EN1964 152-9.1-223 | 152 | 223 | 9.1 | 3.7 | 675 | 9.7 | |
7 | EN1964 204-10-166.7 | 204 | 166.7 | 10 | 3.8 | 460 | 18 | |
8 | EN1964 204-13.4-166.7 | 204 | 13.4 | 570 | 23 | |||
9 | EN1964 204-20-166.7 | 204 | 20 | 800 | 28 | |||
10 | EN1964 204-26.8-166.7 | 204 | 26.8 | 1040 | 33 | |||
11 | EN1964 204-10-200 | 204 | 200 | 10 | 4.6 | 470 | 19 | |
12 | EN1964 204-13.4-200 | 204 | 13.4 | 580 | 24 | |||
13 | EN1964 204-20-200 | 204 | 20 | 810 | 29 | |||
14 | EN1964 204-26.8-200 | 204 | 26.8 | 1050 | 36 | |||
15 | EN1964 204-40-200 | 204 | 40 | 1510 | 48 | |||
16 | EN1964 229-40-166.7 | 229 | 166.7 | 40 | 4.8 | 1250 | 50 | |
17 | EN1964 229-50-166.7 | 229 | 50 | 1510 | 58 | |||
18 | EN1964 229-40-200 | 229 | 200 | 40 | 5.2 | 1250 | 53 | |
19 | EN1964 229-45-200 | 229 | 45 | 1370 | 57 | |||
20 | EN1964 229-50-200 | 229 | 50 | 1510 | 59 | |||
21 | EN1964 229-40-200 | 229 | 40 | 5.7 | 1250 | 55 | ||
22 | EN1964 229-45-200 | 229 | 45 | 1370 | 58 | |||
23 | EN1964 229-50-200 | 229 | 50 | 1510 | 62 | |||
24 | EN1964 267-60-200 | 267 | 60 | 6.2 | 1370 | 74 | ||
25 | EN1964 267-68-200 | 267 | 68 | 1510 | 81 | |||
26 | EN1964 267-70-200 | 267 | 70 | 1530 | 83 | |||
27 | EN1964 267-60-166.7 | 267 | 166.7 | 60 | 6.5 | 1370 | 73 | 34Mn2V |
28 | EN1964 267-67.5-166.7 | 267 | 67.5 | 1510 | 81 | |||
29 | EN1964 267-70-166.7 | 267 | 70 | 1530 | 82 | |||
30 | EN1964 267-60-166.7 | 267 | 60 | 6.8 | 1370 | 74 | ||
31 | EN1964 267-67.5-166.7 | 267 | 67.5 | 1510 | 82 | |||
32 | EN1964 267-70-166.7 | 267 | 70 | 1530 | 83 | |||
33 | EN1964 279-60-200 | 279 | 200 | 60 | 6.4 | 1280 | 78 | 34CrMo4 |
34 | EN1964 279-70-200 | 279 | 70 | 1460 | 85 | |||
35 | EN1964 279-80-200 | 279 | 80 | 1640 | 92 |
68L Carbon Dioxide Cylinders,45KG CO2 for firefighting uses.
Type | ISO9809 CO2 cylinder | Outside diameter | 267mm |
Water capacity | 80L | Height | 1710mm |
Working pressure | 200Bar | Storage gas | 12M3 |
Test pressure | 300Bar | Weight | 84kg |
Design wall thickness | 6.2mm | Material | 34CrMo4 |
Color | Generally red or as customers' demand | ||
Filling medium | carbon dioxide | ||
Packing | 1.bulk loading; 2.packed in plastic woven net; 3.packed in wooden pallets; 4.as required. | ||
About CBMTECH | As a China gas cylinder manufacturer, CBMTECH offers Oxygen Gas Cylinder, Nitrogen Gas Cylinder, Argon Gas Cylinder, CO2 Gas Cylinder, Hydrogen Gas Cylinder, Helium Gas Cylinder, Acetylene gas cylinder, CO2 Cartridge and Aluminum Cylinder … CE/TUV certified. |
