PSA Oxygen Generator vs Liquid Oxygen Tank: Which One is Better for Hospitals?

A reliable oxygen supply is one of the most important requirements in modern healthcare. Every hospital depends on a continuous supply of medical-grade oxygen for operating theaters, intensive care units (ICUs), emergency departments, neonatal care, and general patient wards. Selecting the right oxygen source is essential for ensuring uninterrupted patient care, reducing operating costs, and improving hospital efficiency.

Today, hospitals generally choose between two primary oxygen supply systems: the PSA oxygen generator and the liquid oxygen (LOX) tank. Both systems are widely used around the world, but each has different advantages depending on hospital size, oxygen demand, available infrastructure, and budget.

In this guide, we compare these two technologies to help hospitals determine which solution best fits their operational needs.

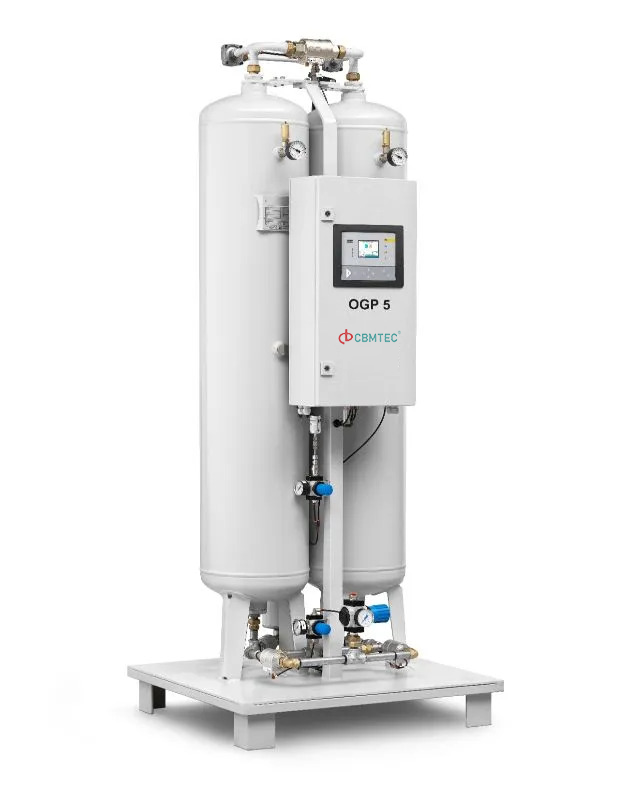

What is a PSA Oxygen Generator?

A Pressure Swing Adsorption (PSA) oxygen generator is an on-site oxygen production system that separates oxygen from compressed ambient air using molecular sieve technology.

The system continuously produces medical oxygen with a purity of approximately 93% ± 3%, which complies with international medical oxygen standards for PSA-generated oxygen.

A complete PSA oxygen plant generally includes the following:

• Air Compressor

• Air Dryer

• Air Filters

• Air Receiver Tank

• PSA Oxygen Generator

• Oxygen Buffer Tank

• Oxygen Booster (Optional)

• Cylinder Filling Ramp (Optional)

• Medical Gas Pipeline System (MGPS)

The oxygen generated is supplied directly to the hospital pipeline system or stored for future use.

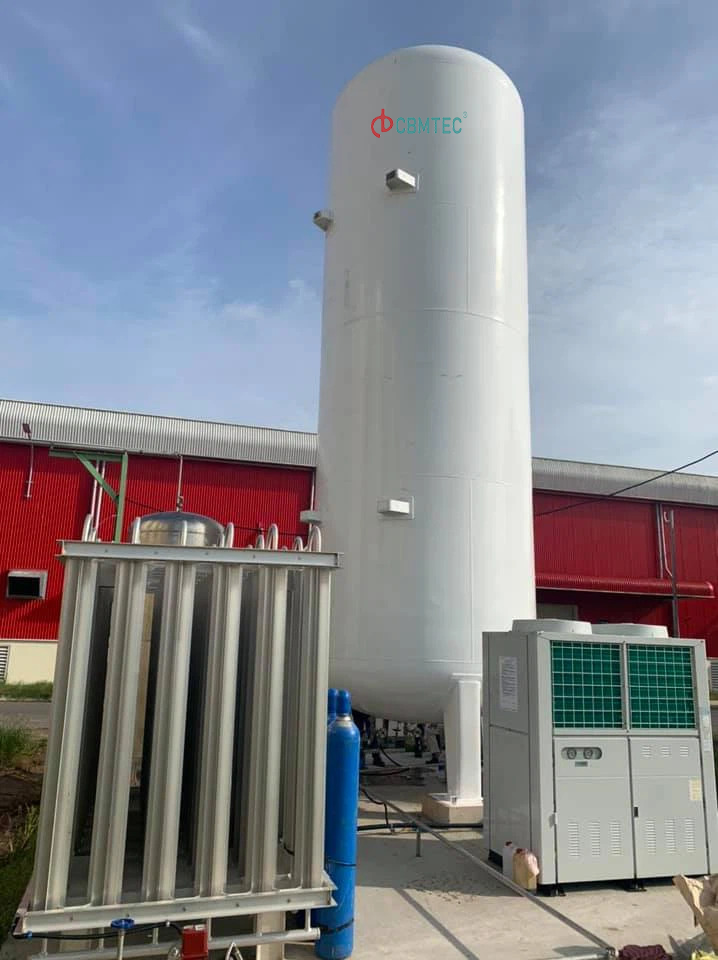

What is a Liquid Oxygen (LOX) Tank?

A liquid oxygen tank is a cryogenic storage system designed to store oxygen in liquid form at extremely low temperatures.

Instead of producing oxygen on-site, hospitals receive liquid oxygen from industrial gas suppliers. The liquid oxygen is stored inside insulated cryogenic tanks and converted into gaseous oxygen using ambient vaporizers before entering the medical gas pipeline system.

A LOX system generally consists of the following:

• Cryogenic Storage Tank

• Pressure Building System

• Safety Valves

• Ambient Vaporizer

• Pressure Control Unit

• Medical Gas Pipeline Connection

This solution is commonly used in large hospitals with high oxygen consumption.

Working Principle

PSA Oxygen Generator

1. Ambient air enters the air compressor.

2. Air passes through filters and dryers.

3. Nitrogen is removed using molecular sieves.

4. High-purity oxygen is produced.

5. Oxygen is stored in the buffer tank.

6. Oxygen is supplied directly to the hospital pipeline.

Liquid Oxygen Tank

1. Liquid oxygen is delivered by tanker.

2. Oxygen is stored at cryogenic temperatures.

3. Ambient vaporizers convert liquid oxygen into gas.

4. Pressure regulators stabilize delivery pressure.

5. Oxygen enters the hospital MGPS.

PSA Oxygen Generator vs Liquid Oxygen Tank

Advantages of PSA Oxygen Generator

Lower Operating Cost

Hospitals generate oxygen on-site, eliminating recurring oxygen purchase expenses.

Continuous Oxygen Supply

The system operates 24 hours a day with proper maintenance.

Energy-Efficient

Modern PSA systems consume relatively low power compared to continuous oxygen purchasing costs.

Reduced Logistics

No need for frequent oxygen cylinder deliveries or LOX tanker transportation.

Easy Expansion

Additional oxygen generators can be installed when demand increases.

Environmentally Friendly

Lower transportation requirements reduce carbon emissions.

Advantages of Liquid Oxygen Tank

High Oxygen Purity

LOX systems typically provide oxygen with purity greater than 99%.

Suitable for Large Hospitals

Ideal for medical centers with extremely high oxygen consumption.

Stable Supply

Large storage capacity allows continuous oxygen availability between deliveries.

Minimal Daily Operation

Once installed, the system requires relatively little operator involvement.

Limitations of PSA Oxygen Generator

• Requires electricity for operation.

• Needs periodic preventive maintenance.

• Oxygen purity is lower than cryogenic oxygen.

• Initial investment can be significant.

Limitations of Liquid Oxygen Tank

• Requires regular oxygen deliveries.

• Higher long-term operating costs.

• Transportation logistics must be carefully managed.

• Cryogenic equipment requires specialized installation.

• Supply interruptions may occur if deliveries are delayed.

Which System is Better for Hospitals?

The answer depends on the hospital's size and oxygen demand.

Choose a PSA oxygen generator if:

• You want to reduce long-term operating costs.

• Reliable electricity is available.

• Oxygen independence is important.

• The hospital is located in a remote area.

• You want on-site oxygen production.

Choose a liquid oxygen tank if:

• Oxygen consumption is extremely high.

• Reliable oxygen suppliers are available nearby.

• The hospital already has cryogenic infrastructure.

• Space is available for cryogenic tank installation.

Can Both Systems Work Together?

Yes.

Many modern hospitals install both systems.

Typically:

• A liquid oxygen tank serves as the primary oxygen source.

• The PSA oxygen generator acts as a backup.

• An automatic manifold or source changeover system switches between sources without interrupting oxygen supply.

This configuration provides maximum reliability and ensures uninterrupted patient care.

CBMTEC Medical Oxygen Solutions

At CBMTEC Medical, we provide complete medical gas engineering solutions tailored to the needs of hospitals, healthcare facilities, and industrial projects worldwide.

Our solutions include:

• PSA Oxygen Generator Systems

• Cryogenic Liquid Oxygen Tank Solutions

• Medical Gas Pipeline Systems (MGPS)

• Oxygen Manifold Systems

• Medical Air Compressor Systems

• Medical Vacuum Systems

• Medical Gas Alarm Systems

• Medical Gas Outlets

• Bed Head Units

• Flowmeters and Regulators

• Design, Installation, Testing & Commissioning

Our experienced engineering team delivers reliable, efficient, and standards-compliant oxygen supply systems that ensure safe and continuous medical gas delivery.

Conclusion

Both PSA oxygen generators and liquid oxygen tanks are proven technologies for hospital oxygen supply. PSA systems offer cost-effective, independent oxygen generation with lower operating expenses, while LOX systems provide high-purity oxygen and are ideal for facilities with very high consumption.

The best choice depends on hospital size, patient demand, infrastructure, budget, and long-term operational goals. Carefully evaluating these factors will help healthcare providers implement the most efficient and reliable oxygen supply solution.

Frequently Asked Questions (FAQ)

Is PSA oxygen suitable for hospitals?

Yes. PSA oxygen generators produce medical oxygen that meets international standards and is widely used in hospitals worldwide.

Which system is more cost-effective?

For most hospitals, PSA oxygen generators offer lower long-term operating costs because oxygen is produced on-site.

What oxygen purity does a PSA generator produce?

Typically 93% ±3%, which complies with medical oxygen standards for PSA systems.

When should a hospital choose a liquid oxygen tank?

Hospitals with very high oxygen demand and access to reliable bulk oxygen deliveries often benefit from liquid oxygen tank systems.

Can PSA and LOX systems be used together?

Yes. Many hospitals use a dual-source configuration where one system serves as the primary source and the other as a backup, ensuring an uninterrupted oxygen supply.
