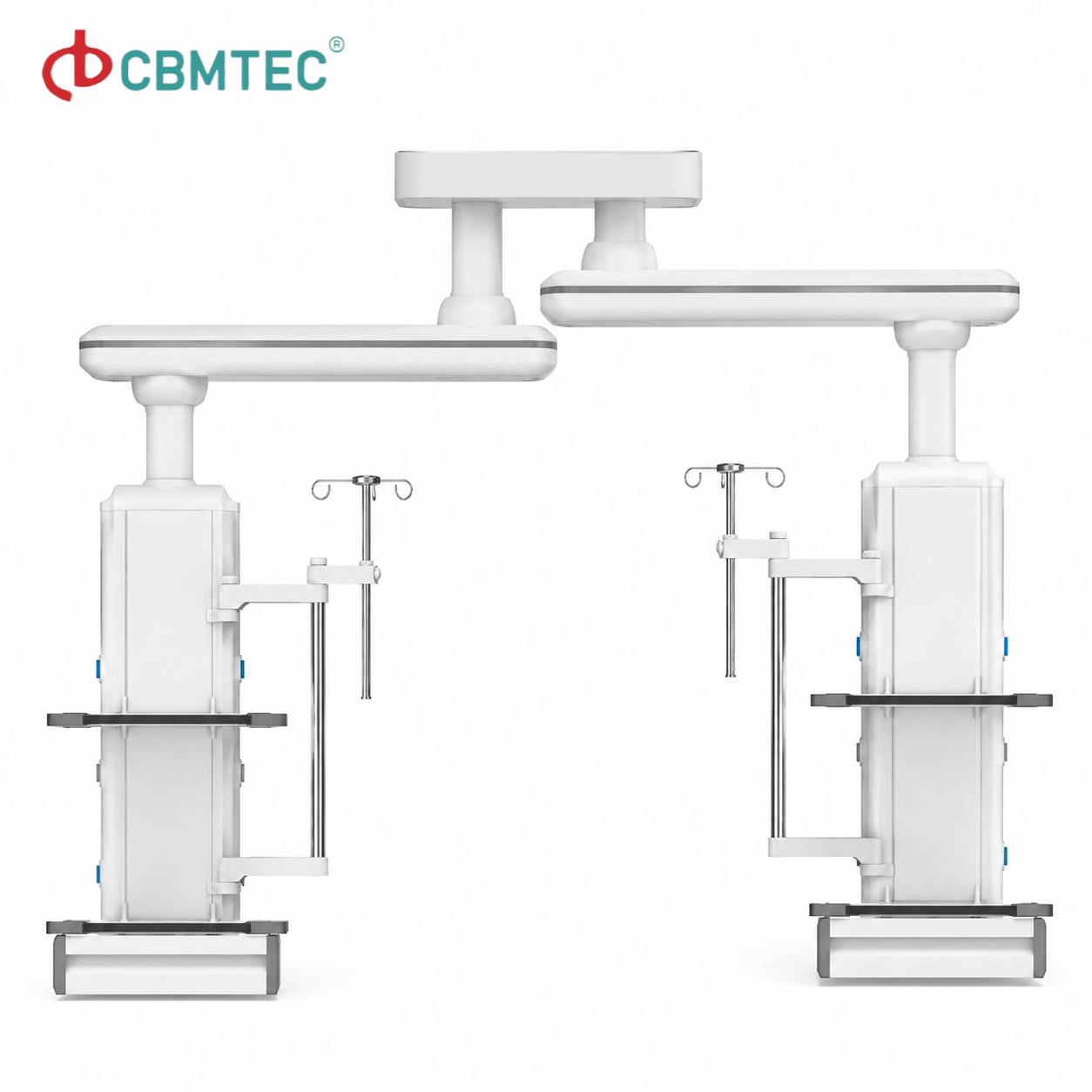

ICU swing arm suspension bridge

Description：

Imported plastic powder, electrostatic painting process, painting thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

 Panasonic Robot ensure 360° full smooth welding.

 The tensile strength of aluminum alloy frame is more than 295MPa, some connecting parts are made of cast iron ≥200MPa, and the net load is more than 200kg; one-off extrusion molding, and the surface undergoes the primary oxidation treatment.

The pneumatic brake system, using compressed air to brake hanging arms and medical pendants, one press to release the brake.

The single rotating arm cover 1000mm treatiment radius, can be used flexibly during treatment, meeting the surgical needs of all departments.

Negative pressure terminal obtained the Utility Model Patent.

Specification

Details Images

Appearance Design

The design of double hanging arms style saves ground space;the whole bridge pendant is fully sealed ,no sharp angle to preven the impact.

Painting

Imported plastic powder ,electrostatic paninting process ,painting thickness 0.12mm,brightness 60°,paint can resist 50kg impact.

Welding

Panasonic Robot ensure 360°full smooth welding.

Material

The tensile strength of aluminum alloy frame is more than 295MPa，some connecting parts are made of cast iron≥200MPa，and the net load is more than 300kg；one-off extrusion molding，and the surface undergoes the primary oxidation treatment.
