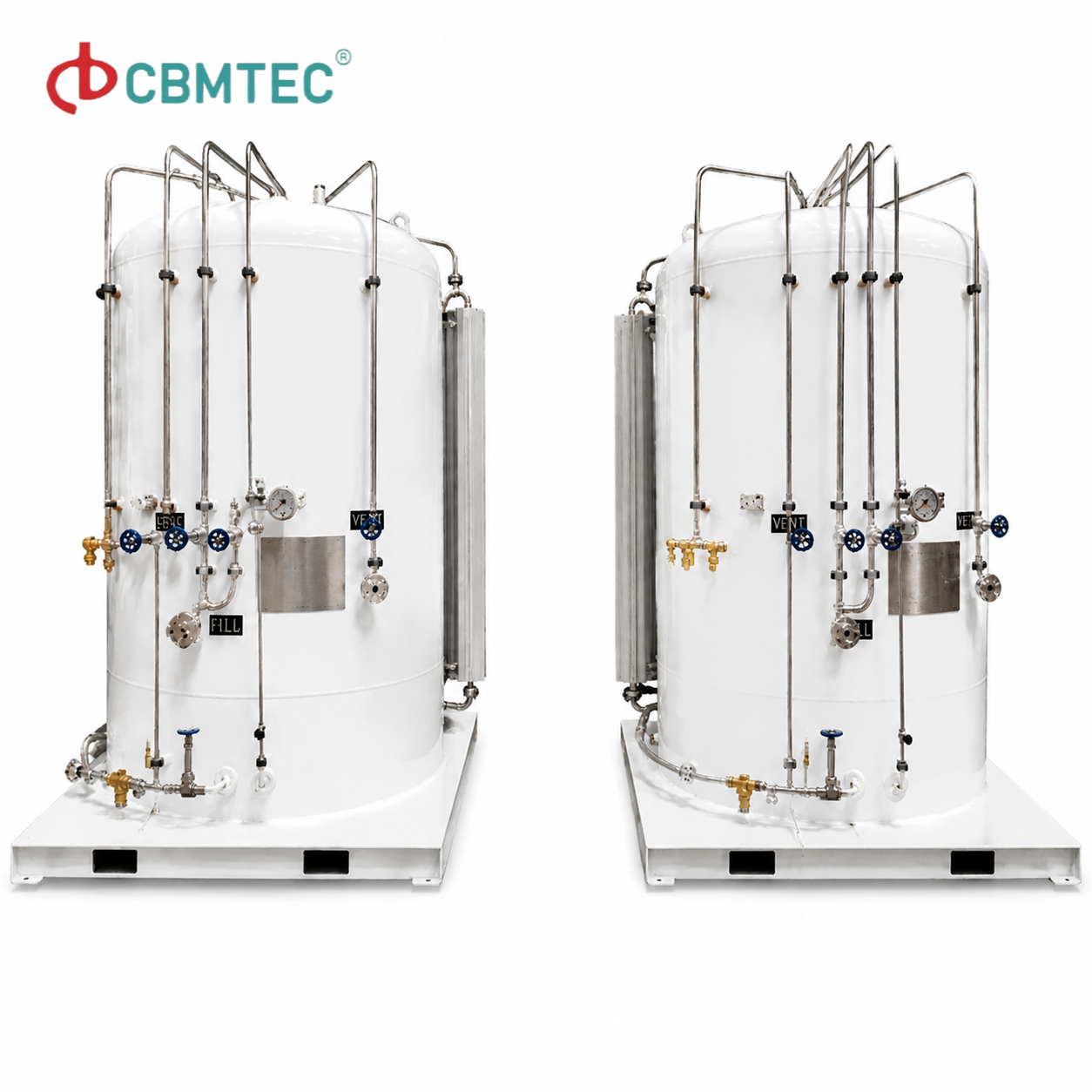

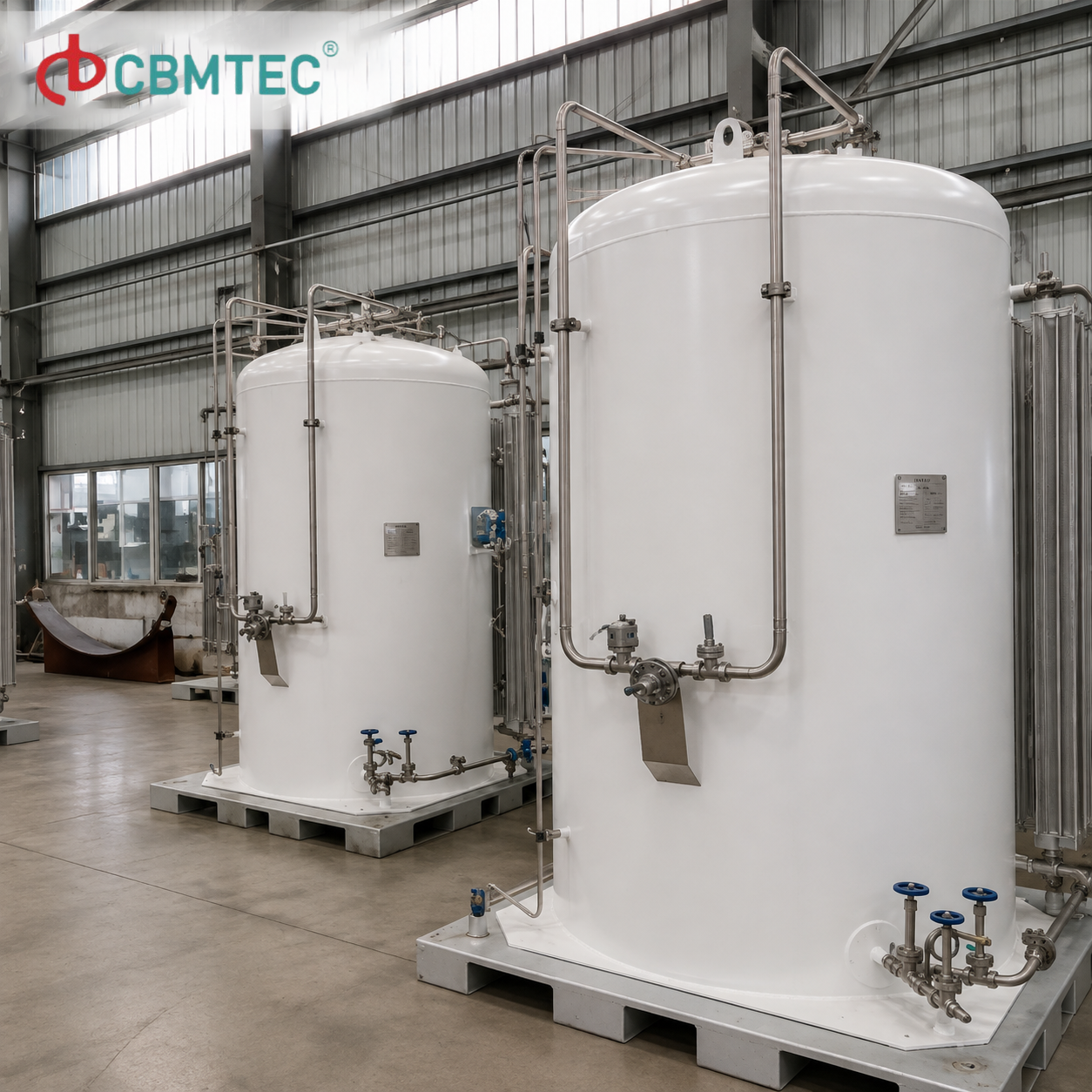

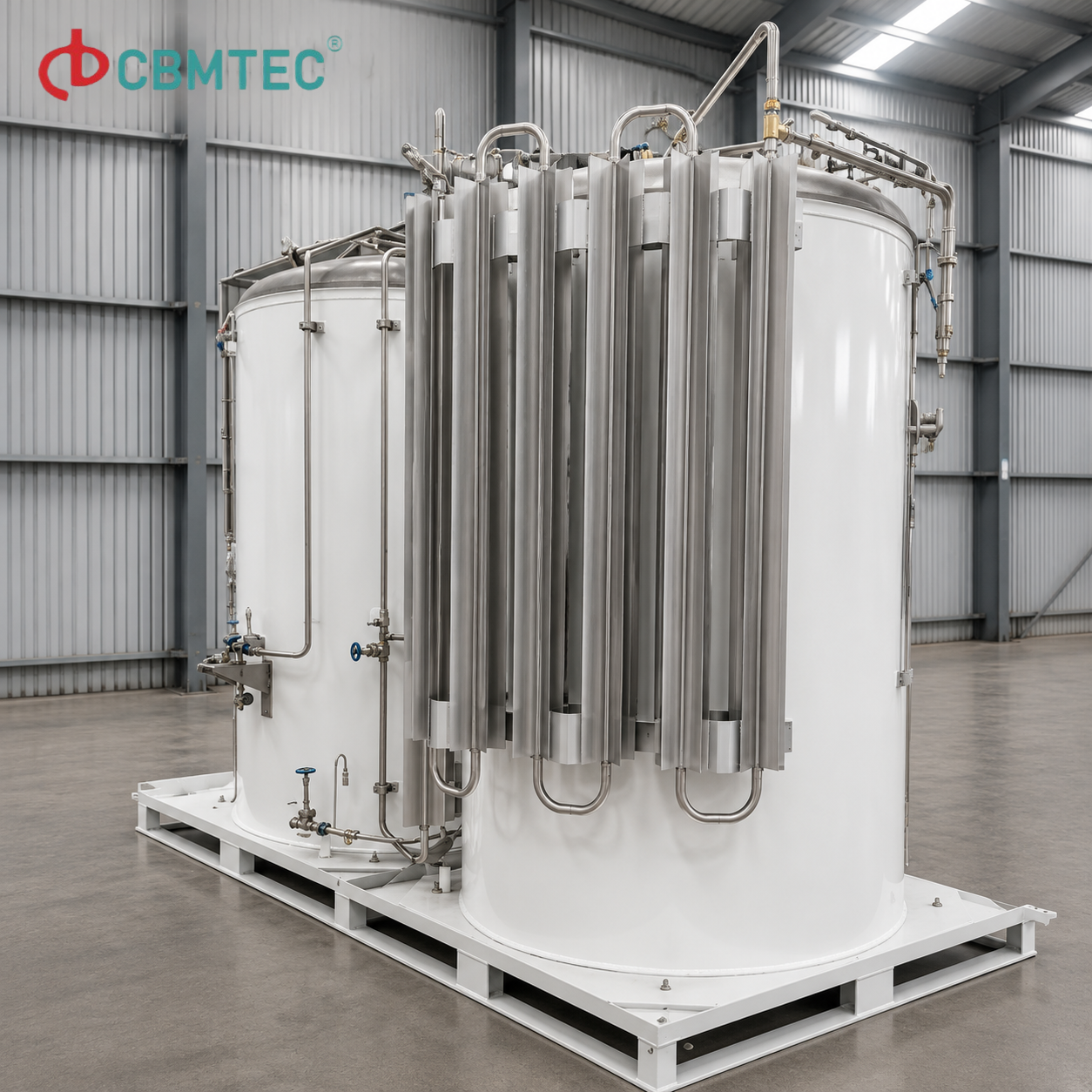

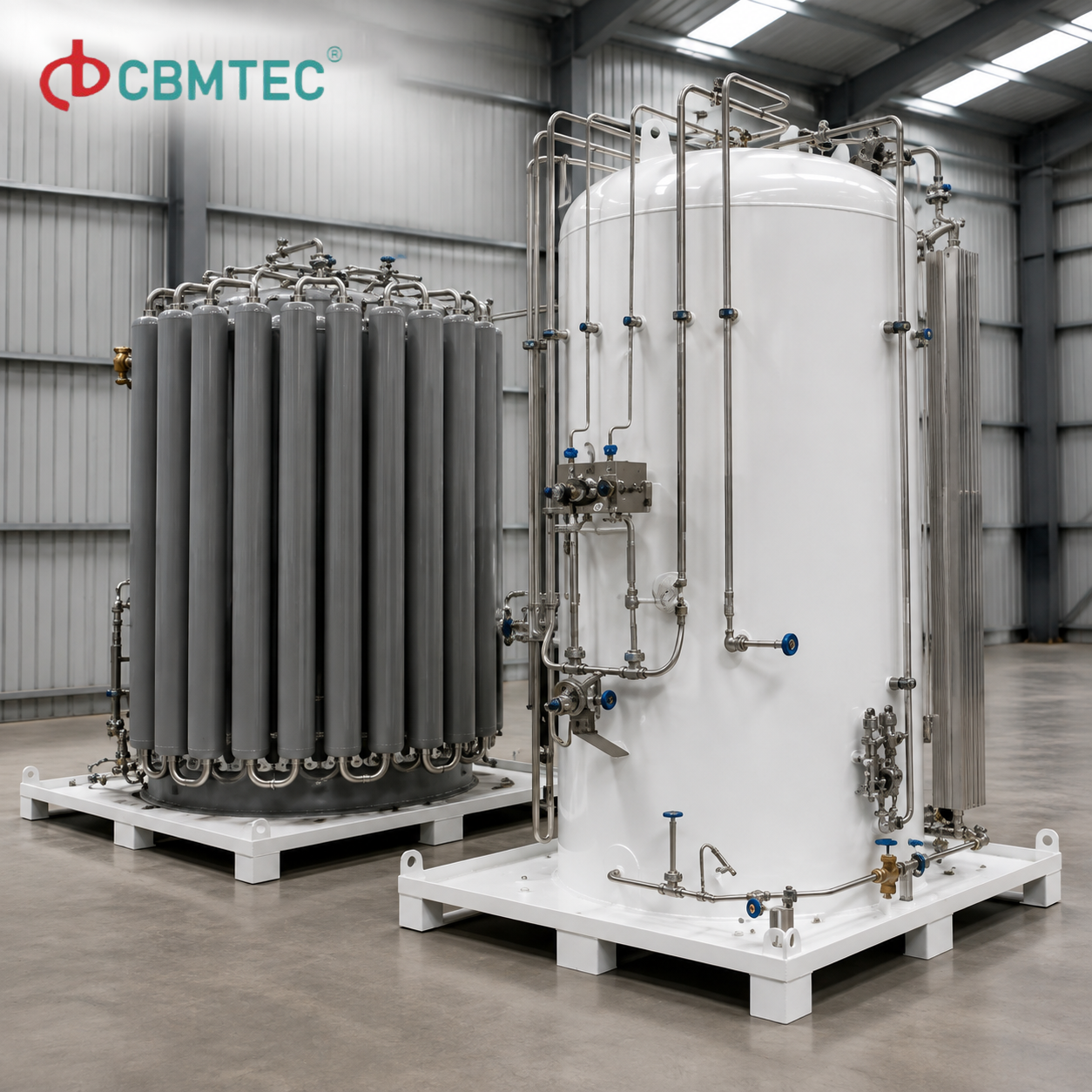

5m3/5000L Lox/Lin/Lar Mini Microbulk Tanks

Micro Bulk Systems Liquid Gas Vertical Steel Storage Tank
The micro bulk tank is a compact jacket-type vacuum multilayer insulation (vacuum powder insulation) cryogenic pressure vessel used for storing and supplying cryogenic liquefied gases (liquid nitrogen, liquid oxygen and liquid argon, etc.)
-1). Storage medium: LO2, LN2, LAr, LNG or LCO2
-2). Working pressure: 0.5MPa ~ 3.0MPa, or as requrested.
-3). Geometric capacity: 1000 liters, 5000 liters, 7000liters etc
-4). Manufacturing standards: A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001 : 2008

Specification of Micro Bulk Tanks:

Features of Mirco Bulk Tanks:

-1).Pallet skip Design: Centralized gas supply system on pallets skip: collect Storage tank, PBC, Vaporizer, and pipelines. Design compact.
-2).Quality Well:High vacuum multi-layer insulation and well designed structure, and no liquid loss.
-3).Easy installation: can put anywhere you want on working site.
-4).Easy transportation: Can lift hooks, or by forklift on movable base.
-5).Easy Operation: All the data is showed on instrument, and can be adjusted according to actual situaton of gas pressure regulation.
-6).Easy Maintenace: CGA Connection, which is convenient to assemble and disassemble.
-7).Intelligent Equipment: taking remote liquid level and pressure supervision, can send tank liquid data to your phone.
