CE/GB Standard Dewar Cryogenic Cylinders of Liquid Nitrogen, Oxygen, CO2 Cylinders

Share to:

CE/GB Standard Dewar Cryogenic Cylinders of Liquid Nitrogen Oxygen CO2 Cylinders

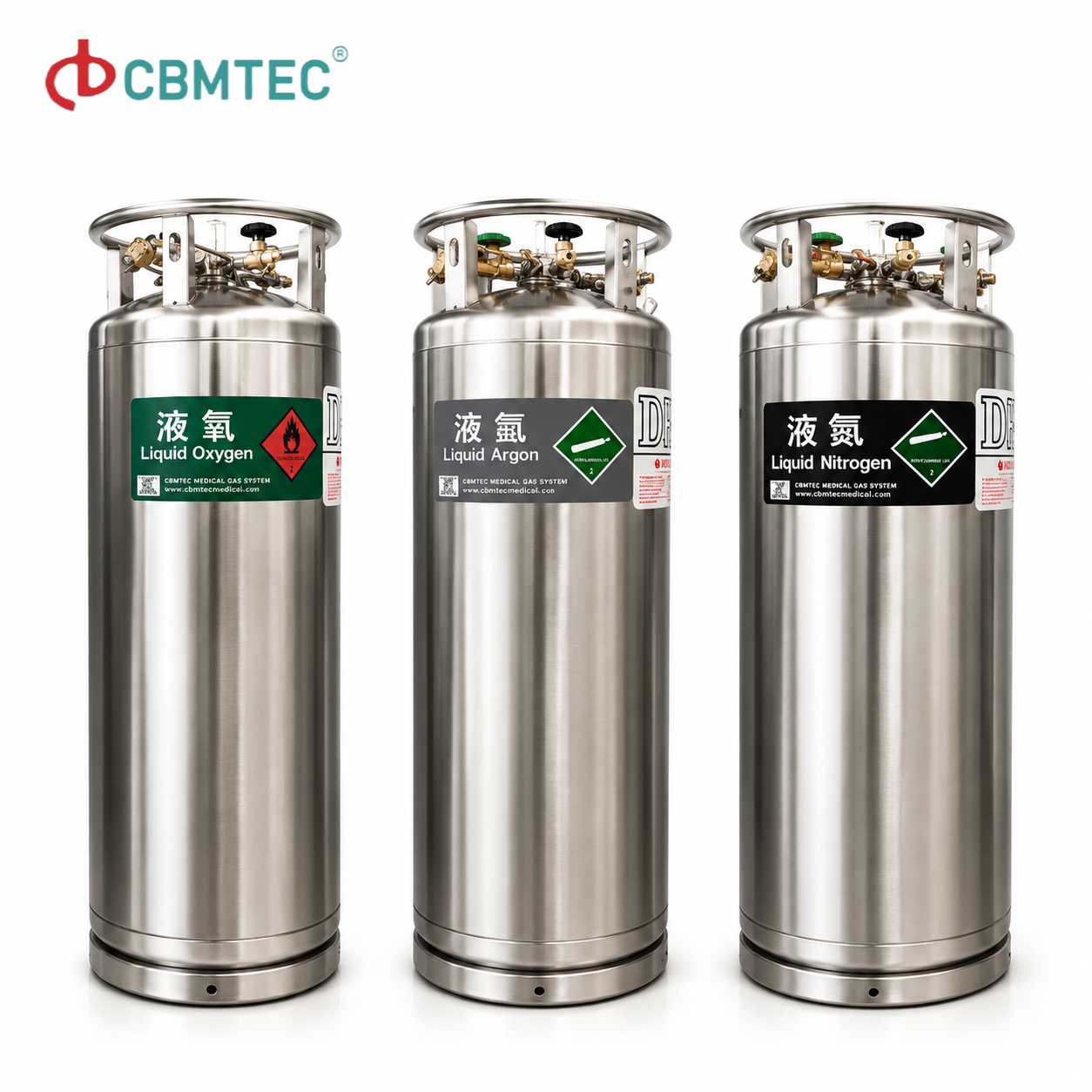

The DPL series containers are high performance vacuum insulated, it is designed to store and transport cryogenic liquid oxygen,nitrogen or argon. Containers can be used for over road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications in a long holding time, with self-Pressure built gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h. if you require a greater vaporizing volume, we can provide an external vaporizer.

Availability:

Quantity:



Inquire Add to Basket

Model:
CNO
Brand:
CBMTEC
Code:
73110090

Product Description

Ref.More specific specifications on Liquid Nitrogen Tank:

Model Number	Volume (L)	Neck Diameter ≤mm	Outer Diameter ≤mm	Height ≤mm	Empty Weught ≤Kg	Stored in Liquid Nitrogen Days		Evaporation of Liquid Nitrogen/Assumption
Model Number	Volume (L)	Neck Diameter ≤mm	Outer Diameter ≤mm	Height ≤mm	Empty Weught ≤Kg	Qualified	Superier	Qualified	Superier
YDS-2	2	30	224	370	2.8	20	25	0.12	0.1
YDS-2	2.5	50	224	370	2.8	20	25	0.12	0.1
YDS-3	3.15	50	224	420	3.4	26	31	0.12	0.1
YDS-6	6	50	305	460	4.5	52	63	0.12	0.1
YDS-10	11.2	50	305	550	6.3	85	110	0.12	0.09
YDS-10B	11.2	50	305	550	6.5	52	64	0.208	0.172
YDS-10-80	11.2	80	305	550	6.3	48	57	0.25	0.2
YDS-10-125	11.2	125	305	550	6.3	25	32	0.4	0.3
YDS-10-210	11.2	210	305	550	7	13	18	0.7	0.6
YDS-15	16	50	365	600	9	134	161	0.12	0.1
YDS-15B	16	50	365	600	9	65	80	0.208	0.172
YDS-15-125	16	125	365	600	9	42	53	0.4	0.3
YDS-20	21	50	365	610	9.5	170	210	0.12	0.1
YDS-30	32	50	446	670	14.5	254	295	0.12	0.1
YDS-30B	32	50	446	670	14.5	159	191	0.24	0.2
YDS-30-80	32	80	446	670	14.5	147	174	0.26	0.22
YDS-30-125	32	125	446	670	14.6	90	112	0.371	0.3
YDS-30-210	32	210	446	670	16	40	50	0.7	0.6
YDS-35	35.5	50	446	695	17	270	310	0.12	0.1
YDS-38-80	35.5	80	446	695	17	159	187	0.25	0.2
YDS-35-125	35.5	125	446	695	17	95	125	0.374	0.309
YDS-50B-50	50	50	500	850	22	160	200	0.385	0.305
YDS-50B-80	50	80	500	850	22	147	189	0.4	0.3
YDS-50B-125	50	125	500	850	22	110	134	0.476	0.4
YDS-50B-210	50	210	500	850	22	50	60	1	0.833
YDS-60B-210	60	210	500	900	32	63	74	1	0.851

Technical Parameters on Liquid Dewar Gas Cylinders:
Storage Medium: liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide;
Volume: 175L/195L/210L/375L/410L/450L/495L;
Working pressure: 1.40MPa/ 2.0MPa.

	DPL-175	DPL-195	DPL-210	DPL-375	DPL-410	DPL-450
Dimensions
Diameter*Height(mm)	508*1350	508*1652	508*1747	900*1632	900*1738	900*1857
Working pressure(Psig)	203	203	203	203	203	203
Pressure Relief Valve(Psig)	231	230	230	231	231	231
Inner Container Bursting Disc(Psig)	377	377	377	377	377	377
Maximum Liquid Capacity(liters)	175	195	210	375	410	450
Usable Liquid Capacity(liters)	166	185	197	357	390	427
Nitrogen	≤2.1%	≤2.0%	≤2.0%	≤1.8%	≤1.8%	≤1.8%
Tare Weight(kg)	111	117	123	200	212	234
Weight of Contents	N/A	N/A	N/A	N/A	N/A	N/A
Oxygen(kg)	172	191	205	369	404	442
Nitrogen(kg)	121	135	145	260	284	311
Argon(kg)	208	233	250	447	488	535
Liquid Carbon Dioxide	N/A	N/A	N/A	N/A	N/A	N/A
Natural Gas	73	72	88	N/A	N/A	N/A

*Brief Features:
-The face-to-face surfaces of the two walls of a Dewar flask are silver plated or polished to reduce heat radiation;
-The upper part or the neck of the inner wall is made of non-conductive materials to reduce heat transfer through solid materials;
-The Dewar bottle is widely used in liquefied gas production, storage, and transport;
-It is also a vacuum-insulated container commonly found in scientific research, medical health care and oil drilling.
