Dewar
CBMTEC
73110090

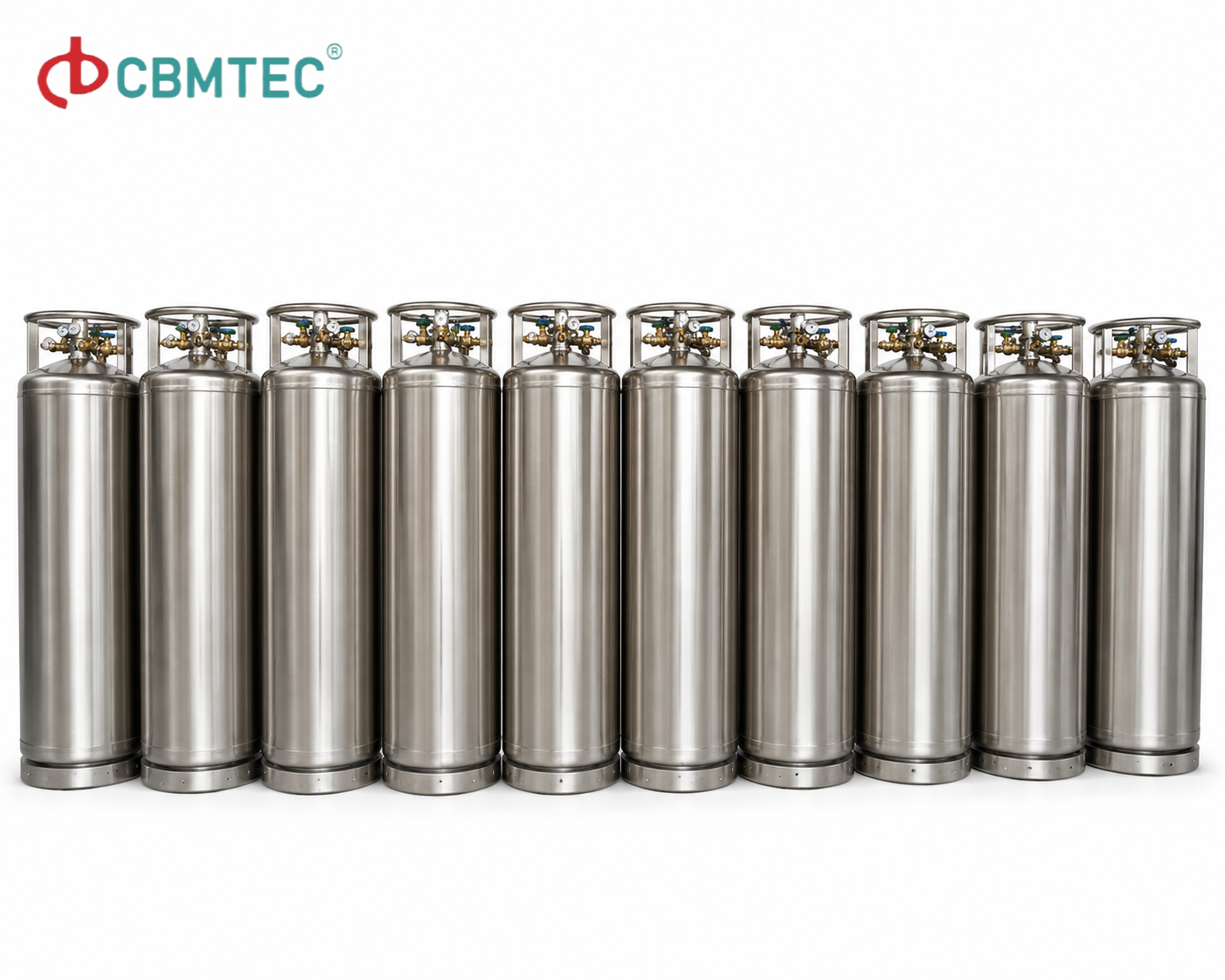

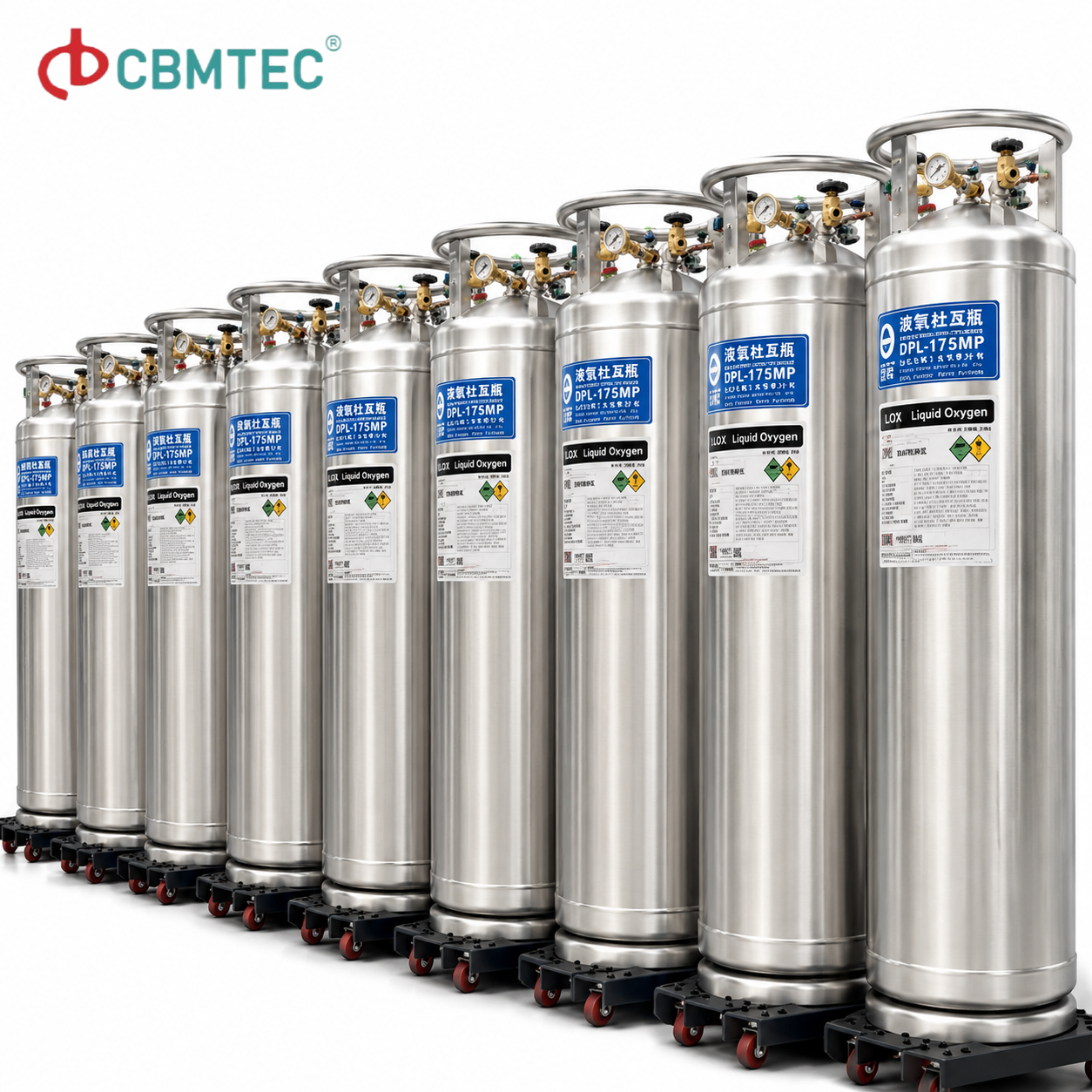

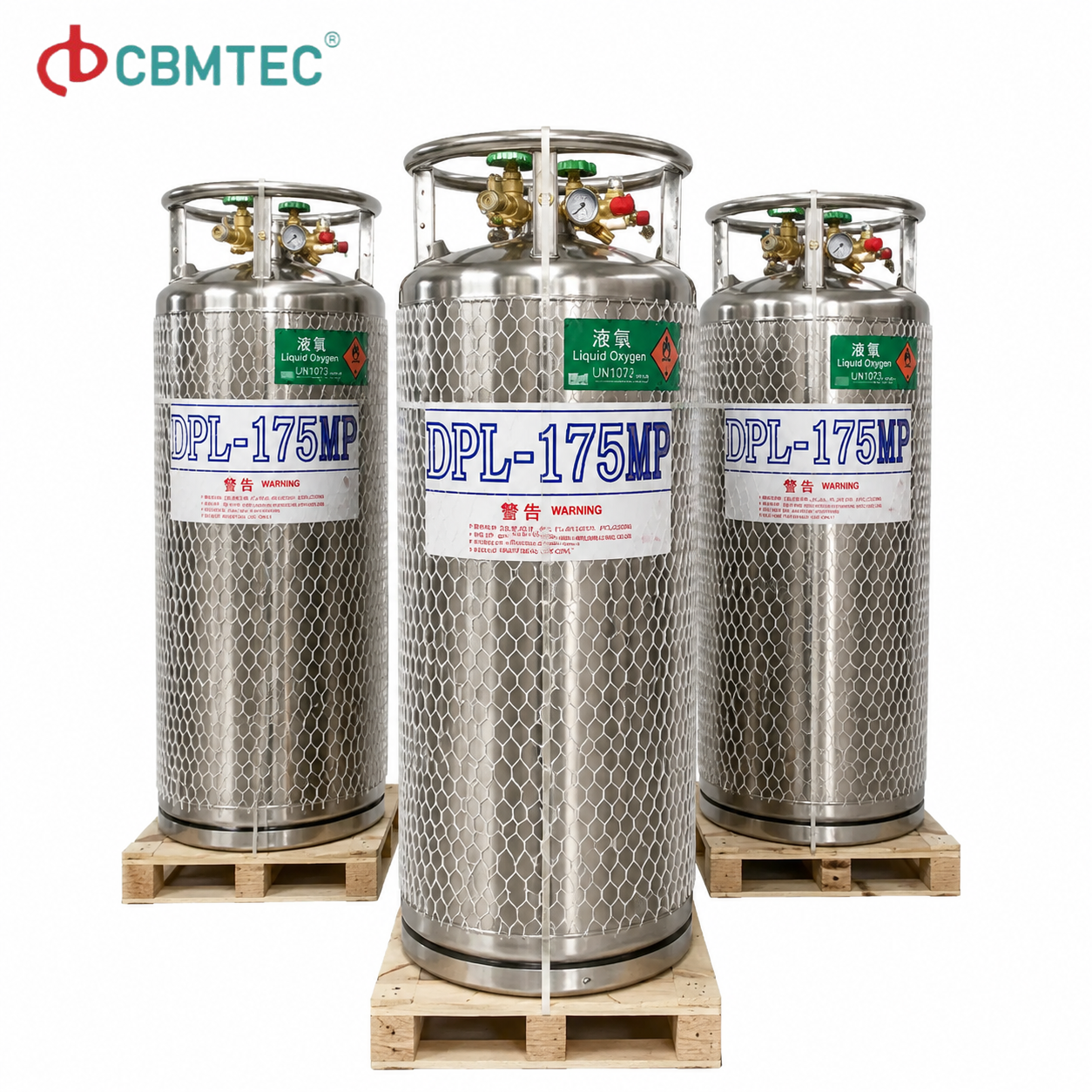

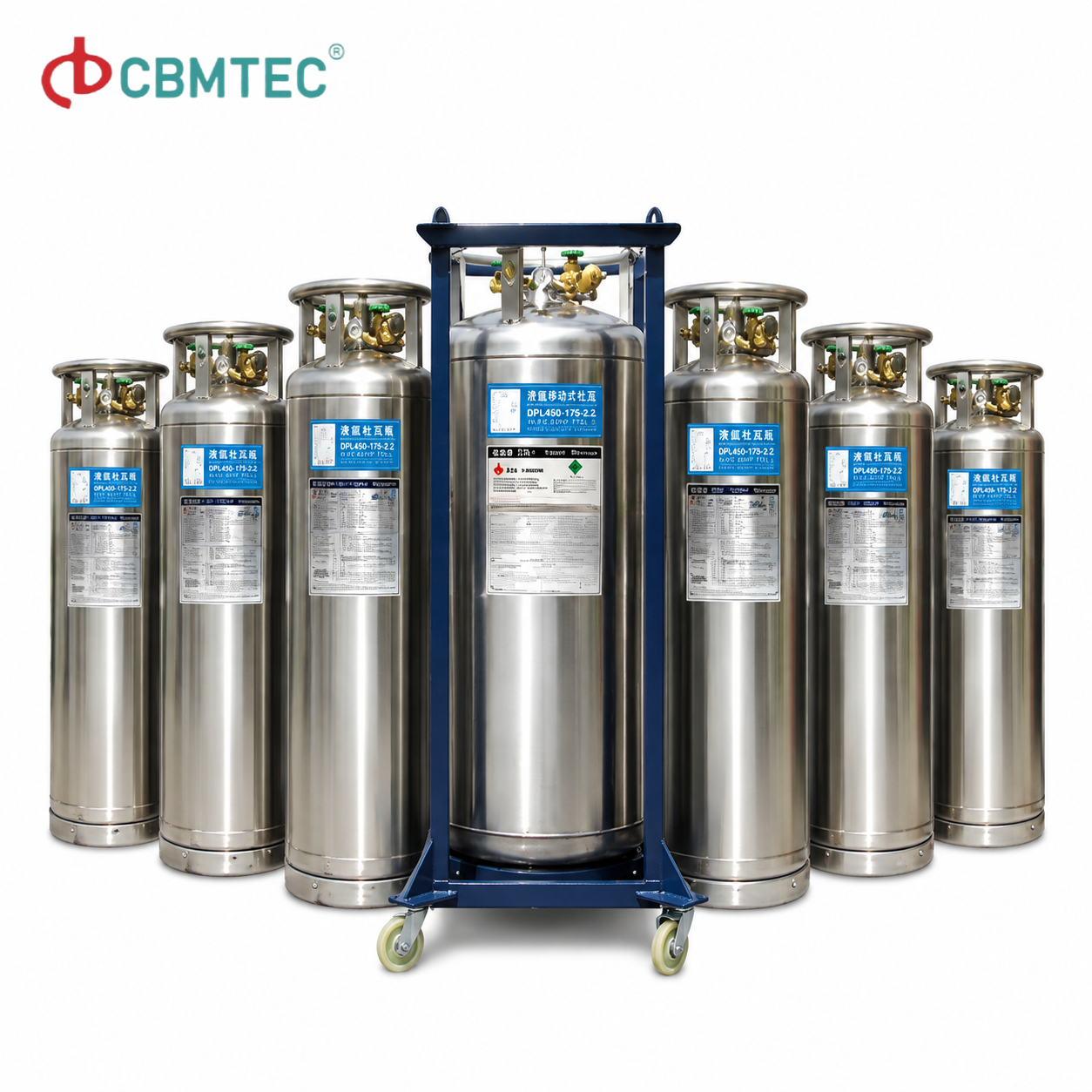

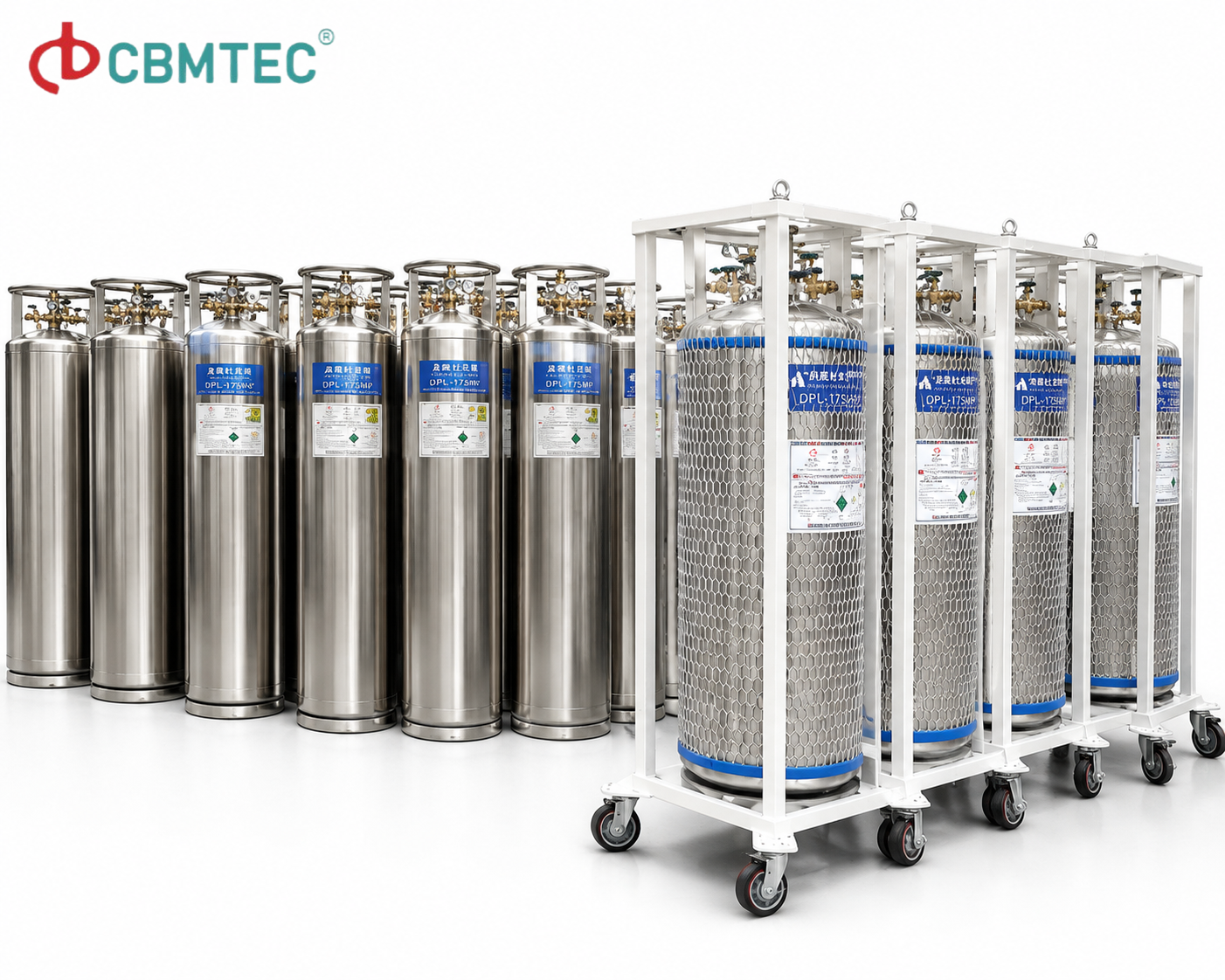

Medical Cryogenic Liquid Oxygen Dewar Cylinders
Medical Cryogenic Liquid Oxygen Dewar Cylinders,Transportable Cryogenic Liquid Oxygen Dewar Cylinders for gas scientific research & medical health care uses.
Technical Parameters on Liquid Dewar Gas Cylinders:
Storage Medium: liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide;
Volume: 175L/195L/210L/375L/410L/450L/495L;
Working pressure: 1.40MPa/ 2.0MPa.
DPL-175 | DPL-195 | DPL-210 | DPL-375 | DPL-410 | DPL-450 | |
Dimensions | ||||||
Diameter*Height(mm) | 508*1350 | 508*1652 | 508*1747 | 900*1632 | 900*1738 | 900*1857 |
Working pressure(Psig) | 203 | 203 | 203 | 203 | 203 | 203 |
Pressure Relief Valve(Psig) | 231 | 230 | 230 | 231 | 231 | 231 |
Inner Container Bursting Disc(Psig) | 377 | 377 | 377 | 377 | 377 | 377 |
Maximum Liquid Capacity(liters) | 175 | 195 | 210 | 375 | 410 | 450 |
Usable Liquid Capacity(liters) | 166 | 185 | 197 | 357 | 390 | 427 |
Nitrogen | ≤2.1% | ≤2.0% | ≤2.0% | ≤1.8% | ≤1.8% | ≤1.8% |
Tare Weight(kg) | 111 | 117 | 123 | 200 | 212 | 234 |
Weight of Contents | N/A | N/A | N/A | N/A | N/A | N/A |
Oxygen(kg) | 172 | 191 | 205 | 369 | 404 | 442 |
Nitrogen(kg) | 121 | 135 | 145 | 260 | 284 | 311 |
Argon(kg) | 208 | 233 | 250 | 447 | 488 | 535 |
Liquid Carbon Dioxide | N/A | N/A | N/A | N/A | N/A | N/A |
Natural Gas | 73 | 72 | 88 | N/A | N/A | N/A |
NOTES
The DPL175/195/210 can deliver either liquid or gas, but DPL375/410/420/450 can only deliver liquid.
Brief Features:
-The face-to-face surfaces of the two walls of a Dewar flask are silver plated or polished to reduce heat radiation;
-The upper part or the neck of the inner wall is made of non-conductive materials to reduce heat transfer through solid materials;
-The Dewar bottle is widely used in liquefied gas production, storage, and transport;
-It is also a vacuum-insulated container commonly found in scientific research, medical health care and oil drilling.
About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
Advantages :
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;
-7)Exporting experience: We have over 5 years' experience for exporting.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
NOTES:
-a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional;
-b). We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
